8-channel Autonomous Driving HIL Vehicle Video Injection Card AUSIM GMSL3
8-channel Autonomous Driving HIL Vehicle Video Injection Card AUSIM GMSL2
4-channel Autonomous Driving HIL Vehicle Video Injection Card AUSIM
4-channel 1000BASE-T1 Car Ethernet Card HIL acquisition injection
8 channel FPD LINK III video injection card for HIL simulation
The W51 supports simulation software to export video signals through HDM I cables and inject them into the domain controller through GMSL cables for automatic driving test verification.
The product has passed joint debugging and testing by multiple host manufacturers, and its performance and stability meet the strict requirements of the client, earning full recognition from the customer base.
Solution provided for algorithm validation and optimization in the autonomous driving industry
Supports 16-channel HDMI video signal input
Supports gPTP timing timestamp with an accuracy of less than 1m
It can operate for a long time and supports various configurations and usage methods for desktop level and HIL racks
AD Station W51 is the ideal choice for the research and development platform for hardware in the loop simulation testing of HIL.

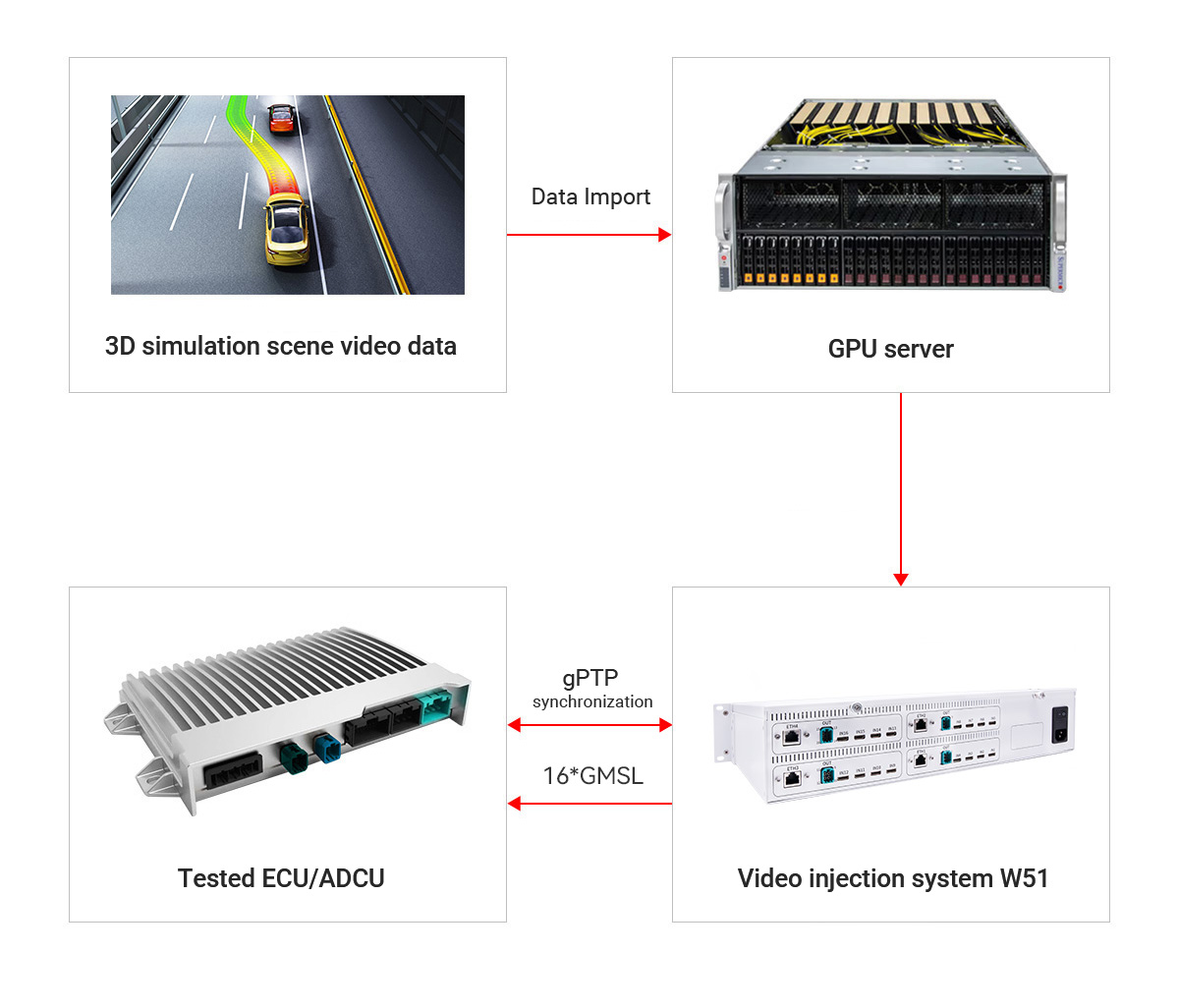

The GPU server inputs simulation scenarios to the W51 through a 16 channel HDMI interface, and the W51 analog camera data is synchronously injected into the ECU to be tested through the 16 channel GMSL camera interface and Ethernet interface gPTP.
There are a total of 16 mini HDMI input interfaces、4-way Gigabit Ethernet interface and 1 4-in-1 Amphenol mini-Fakra interface (4 video outputs) led out from the external interface at the baffle.
Serializer
Supports MAX96717, MAX96717F, MAX9295A, MAX96715, etc
SSerializer rate
3G / 6G
Correspondin g deserializer
Support MAX96712 / MAX9296A and so on
FAKRA
4* 4-in-1 Amphenal Z code mini-Fakra
GMSL output
Support 4096 × 2160@30fps Output
GMSL number of channels
16-channel GMSL video output
Video format
YUV422、RAW12
HMDI interface
Mini HDMI interface
HDMI input
Support 4096 × 2160@30fps input
Number of HDMI channels
16-channel HDMI video input
Synchronous injection
4-way Gigabit Ethernet interface，Supports gPTP timing timestamp with an accuracy of less than 1m
Cable length
Under GMSL1 mode can reach 40m（3Gbps）
Under GMSL2 mode can reach 20m（6Gbps）
Upgrade
Support the upgrade of PC firmware
Working temperature
0℃～70℃
Storage temperature
-40℃～85℃
Working Humidity
10%～90%
Storage Humidity
0～90%
Power supply
220V
Weight
-
Size
Standard 2U chassis, 280 * 430 * 88.9 (mm)
MTBF
5 years
Static power consumption
28.56W
Dynamic power consumption
65.88W
Used for video simulation of unmanned driving systems
Video playback for data collection vehicles
Used for ADAS and autonomous driving test system in loop HIL simulation
