8 channel FPD LINK III video injection card for HIL simulation

  • Model

    BZ704
  • Email

    David.ding@alinx.com

Related

8-channel FPD LINK III Video Injection Card BZ704

Automated driving, assisted driving ADAS, and hardware in the loop simulation HIL injection solution
Intelligent cockpit information, navigation, and entertainment system solution

The solution provided for algorithm validation optimization and hardware in the loop testing HIL injection requirements in the autonomous driving industry is to inject 8-channel FPD LINK III video into the target ECU through one PCIE 3.0 X16 interface, which has the characteristics of high integration, high reliability, space saving, and energy consumption reduction.

  • ·8-channel FPD LINK III video injection

    8-channel 4096x 2160@30fps Output, supports GPU rendering of videos

  • ·Dual system support

    Supports Linux/Window dual systems

  • ·PCIE 3.0 Interface

    High bandwidth data transmission

  • ·Video format

    Supports YUV422 and RAW12



Interface Description

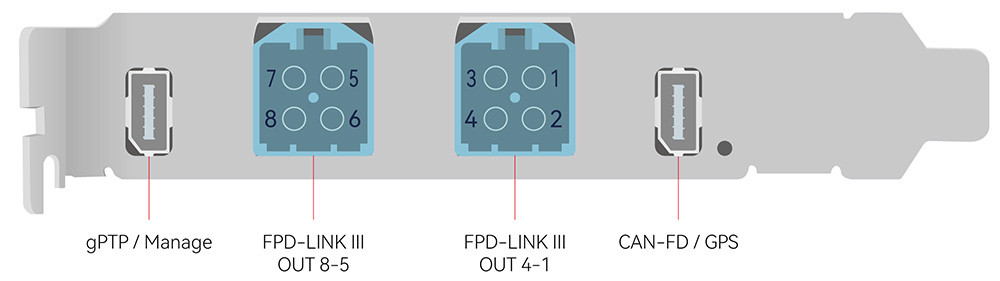

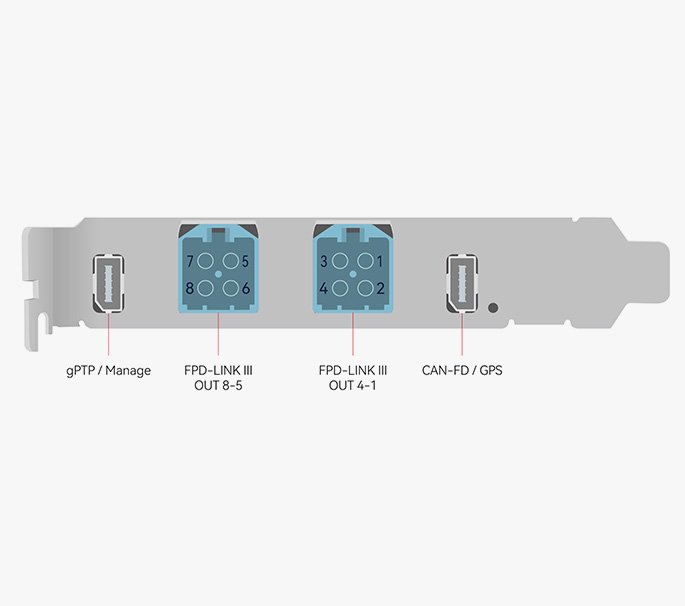

2-way 4-in-1 Amphenol mini-Fakra interfaces (8 channels FPD LINK III video output)

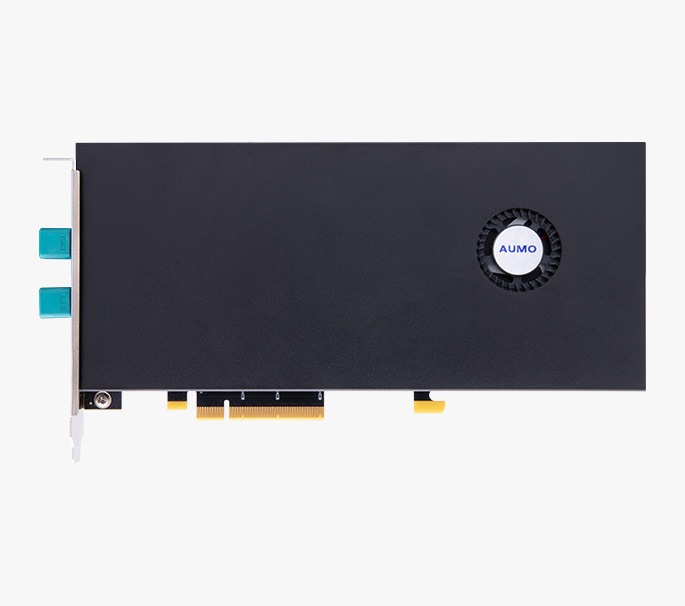

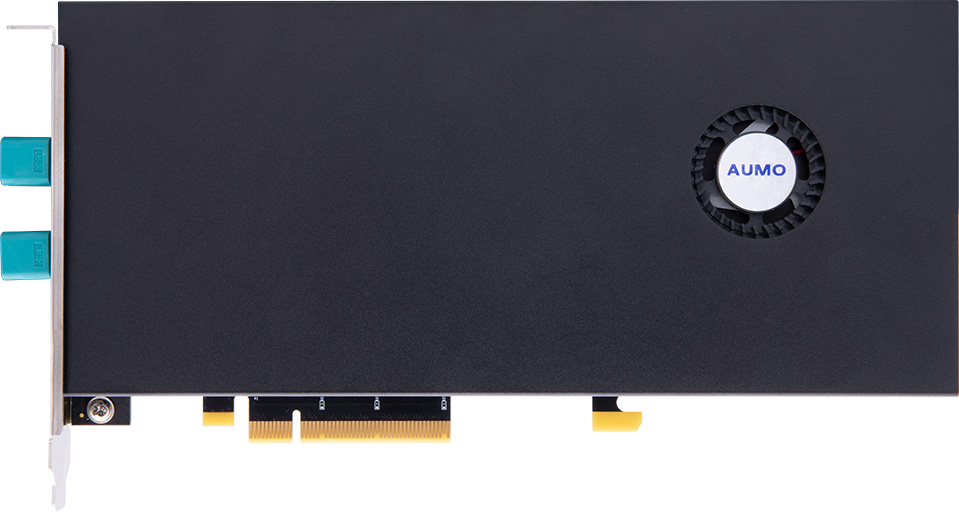

8 路 FPD LINK III 视频注入卡 自动驾驶、辅助驾驶 ADAS HIL 硬件在环仿真 BZ704 1000.png

Key Parameters

Serializer

DS90UB953

Corresponding deserializer

Support DS90UB954, etc

Number of channels

8-channel video output

Output resolution

Supports 8 channels 4MP0@30fps Output

Video format

YUV422、RAW12

FAKRA

4-in-1 Amphenal Z code mini-Fakra

Cable length

15m

PCIE

PCI Express Gen3 x8

Upgrade

Support the upgrade of PC firmware

Operating system

Linux/Windows

Working temperature

-40℃~70℃

Storage temperature

-40℃~85℃

Working humidity

10%~90%

Storage humidity

0~90%

Power supply

PCIE Power supply / 12V Power supply

Weight

400g

MTBF

5 years

Power consumption test

Single board external power supply

18.78W

Size and Structure


Application Method

Injection based image simulation

Used for video simulation of autonomous driving and assisted driving ADAS systems


Intelligent cockpit for automobiles

Used for the development and testing of intelligent cockpit information, navigation, and entertainment systems


Hardware in the loop (HIL) simulation AUSIM

Used for automotive assisted driving ADAS, autonomous driving hardware in the loop HIL simulation
