Model
S1Temperature class
-40℃ ~ 70℃Price
$ 13208
Autonomous Driving CAN/CAN-FD Capture Injection Card
4-channel 1000BASE-T1 Car Ethernet Card HIL acquisition injection
Autonomous driving desktop 12-channel HDMI video injection system
4-channel Autonomous Driving HIL Vehicle Video Injection Card AUSIM
8-channel Autonomous Driving HIL Vehicle Video Injection Card GMSL2 MAX96717 96717F 9295A 96715

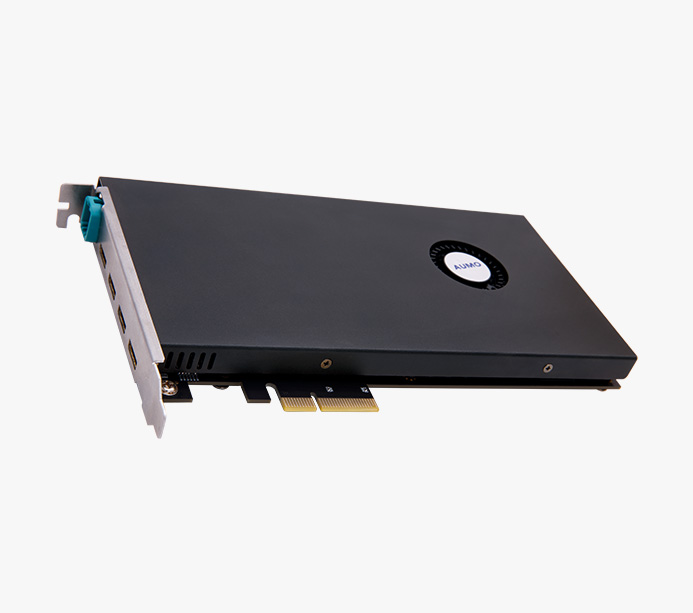

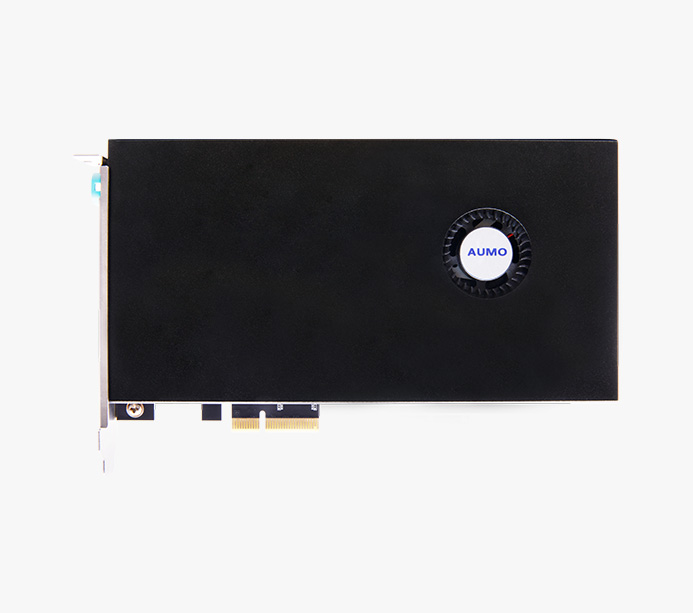

The solution for algorithm verification optimization and hardware-in-the-loop testing HIL injection requirements in the autonomous driving industry can enable multi-board parallel expansion of more injection channels. It realizes 4 HDMI inputs to 4 GMSL2 video injection, and the board also reserves the PCIE X4 interface, which has high integration, high reliability, saving space, reducing energy consumption, and reducing the cost of the whole set of equipment and other features.
Solution provided for algorithm validation and optimization in the autonomous driving industry
Supports 4-channel HDMI video signal input
Supports gPTP timing timestamp with an accuracy of less than 1m
Linux / Windows
Solution for hardware in the loop testing HIL, which can achieve parallel expansion of multiple boards to increase the number of injection channels.

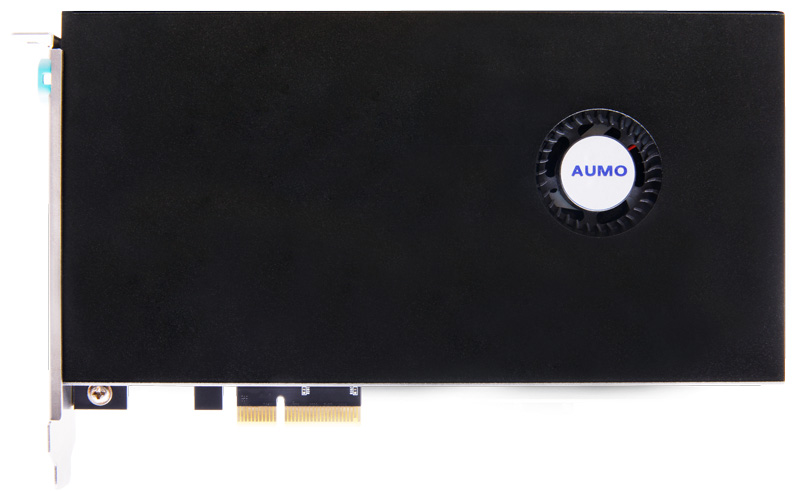

There are a total of 4 mini HDMI input interfaces and 1 4-in-1 Amphenol mini-Fakra interface (4 video outputs) led out from the external interface at the baffle.
Serializer
Supports MAX96717, MAX96717F, MAX9295A, MAX96715, etc
Correspondin g deserializer
Support MAX96712 / MAX9296A and so on
GMSL output
Support 4096 × 2160@30fps Output
GMSL Number of channels
4-channel GMSL video output
Video format
YUV422、RAW12
PCIE
PCI Express Gen 3 x4
HDMI input
Support 4096 × 2160@30fps input
Number of HDMI channels
4-channel HDMI video input
Synchronous injection
1 Gigabit Ethernet interface，Supports gPTP timing timestamp with an accuracy of less than 1m
Cable length
Under GMSL1 mode can reach 40m（3Gbps）
Under GMSL2 mode can reach 20m（6Gbps）
Upgrade
Support the upgrade of PC firmware
operating system
Linux / Windows
HMDI interface
Mini HDMI interface
FAKRA
4-in-1 Amphenal Z code mini-Fakra
Working temperature
-40℃～70℃
Storage temperature
-40℃～85℃
Working Humidity
10%～90%
Storage Humidity
0～90%
Power supply
PCIE Power supply / 12V Power supply
Weight
400g
Size
Length* Width：111.15 * 189.99（mm）
MTBF
5 years
Static power consumption
7.14W
Dynamic power consumption
16.47W

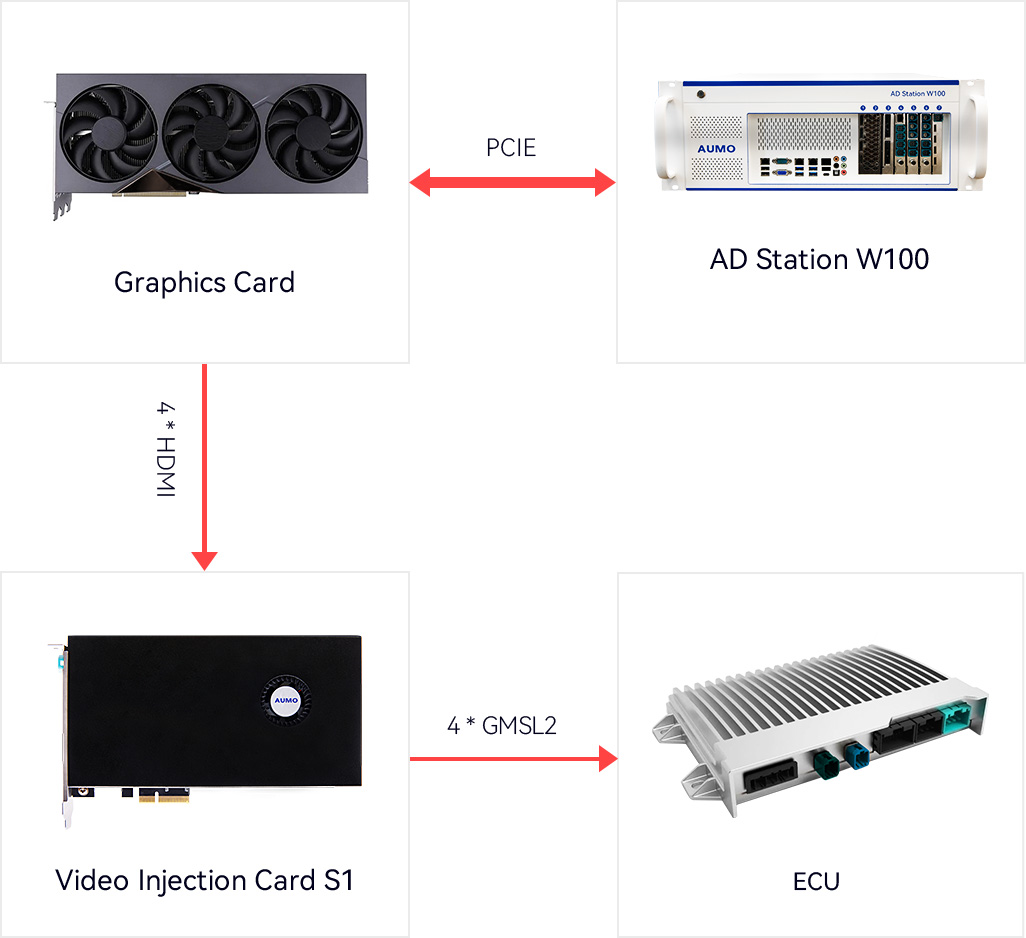

AD Station W100 is a research and development platform for autonomous vehicle acquisition, calculation, and hardware in the loop simulation testing of HIL. It can be paired with 16 channel in car camera GMSL acquisition card A16, 8 channel in car video injection card S2, and 4 channel in car video injection card S1
Used for video simulation of unmanned driving systems
Video playback for data collection vehicles
Used for ADAS and autonomous driving test system in loop HIL simulation
The warranty period of all products sold is 12 months.
