8-channel Autonomous Driving HIL Vehicle Video Injection Card GMSL2 MAX96717 96717F 9295A 96715

  • Model

    BZ705
  • Email

    David.ding@alinx.com

Related

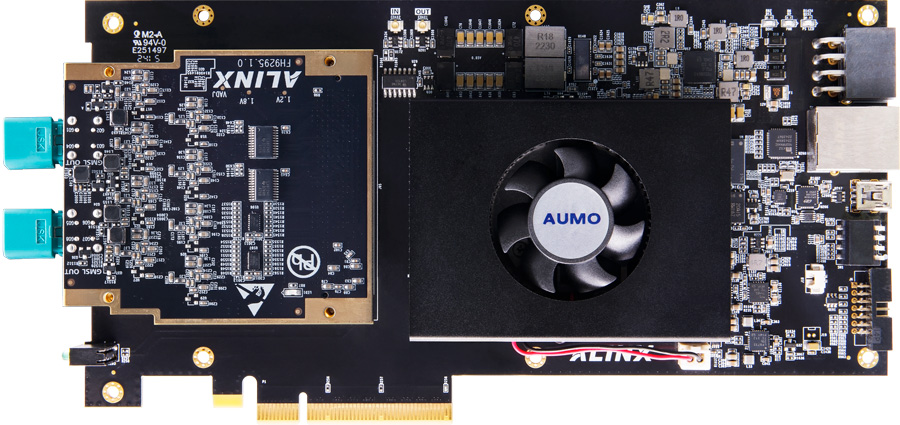

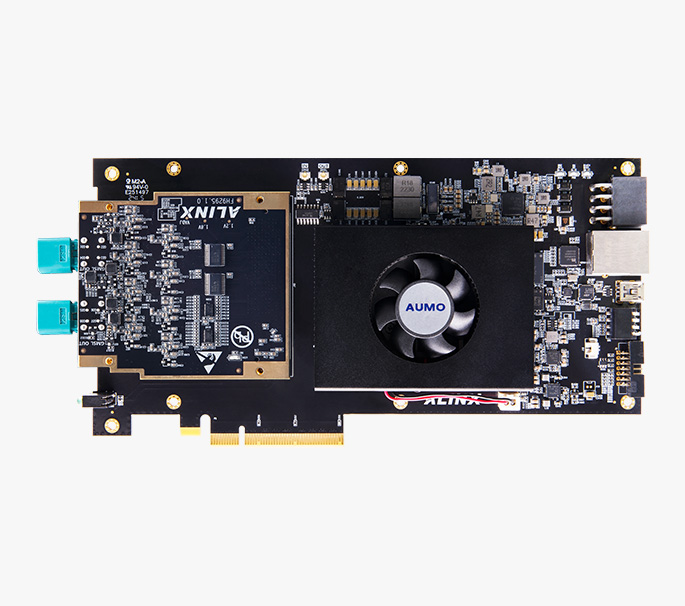

8-channel GMSL2 Video Injection Card BZ705

Hardware-in-the-loop (HIL) simulation injection test solutions for autonomous and assisted driving ADAS

The solution provided for algorithm validation optimization and hardware in the loop testing HIL injection requirements in the autonomous driving industry achieves 8-channel video injection into the target ECU through one PCIE 3.0 X16 interface, with high integration, high reliability, space saving, and energy consumption reduction characteristics.

  • ·8-channel GMSL2 video injection

    8-channel 4096x 2160@30fps Output, supports GPU rendering of videos

  • ·Dual system support

    Supports Linux/Window dual systems

  • ·PCIE 3.0 interface

    High bandwidth data transmission

  • ·Video format

    Supports YUV422 and RAW12

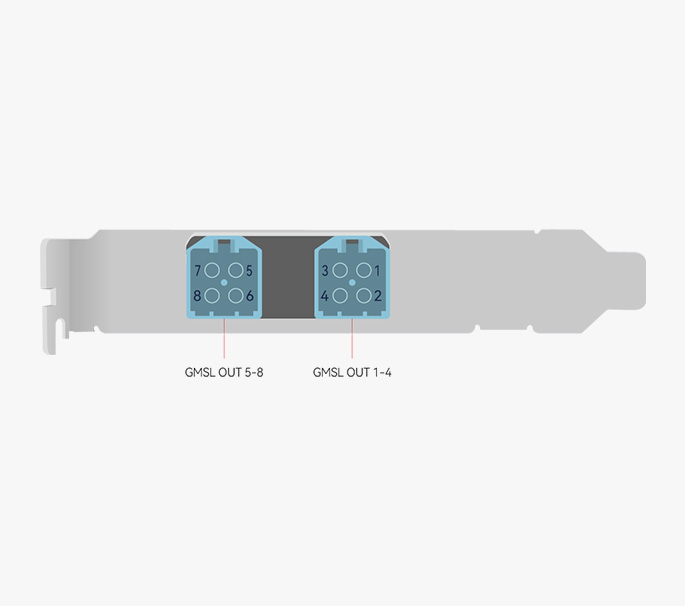

Interface Description

2-way 4-in-1 Amphenol mini-Fakra interfaces (8-way video output)



Key Parameters

Serializer

Supports MAX96717, MAX96717F, MAX9295A, MAX96715, etc

Corresponding deserializer

Support MAX96712, MAX9296A, etc

Number of channels

8-channel video output

Output resolution

Supports 8 channels 4096x 2160@30fps Output

Video format

YUV422、RAW12

FAKRA

4-in-1 Amphenal Z code mini-Fakra

Cable length

Under GMSL1 mode can reach 40m (3Gbps)
Under GMSL2 mode can reach 20m(6Gbps)

PCIE

PCI Express Gen3 x8

Upgrade

Support the upgrade of PC firmware

Operating system

Linux/Windows

Working temperature

-40℃~70℃

Storage temperature

-40℃~85℃

Working humidity

10%~90%

Storage humidity

0~90%

Power supply

PCIE Power supply / 12V Power supply

Weight

400g

MTBF

5 years

Power consumption test

Single board external power supply

18.78W

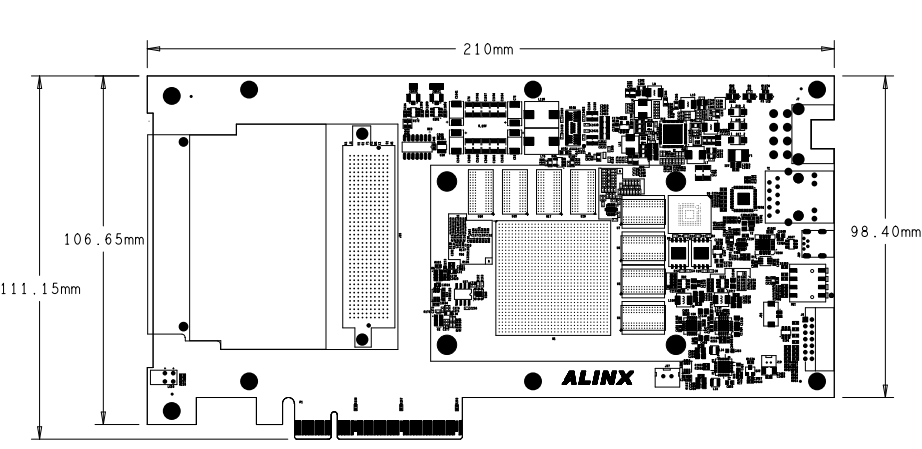

Size and Structure


Application Method

Injection based image simulation

Used for video simulation of autonomous driving and assisted driving ADAS systems


Intelligent cockpit for automobiles

Used for the development and testing of intelligent cockpit information, navigation, and entertainment systems


Hardware in the loop (HIL) simulation AUSIM

Used for automotive assisted driving ADAS, autonomous driving hardware in the loop HIL simulation
