Model
S2Temperature class
-40℃ ~ 70℃Price
$ 13208
4-channel Autonomous Driving HIL Vehicle Video Injection Card AUSIM
Autonomous driving desktop 16-channel HDMI video injection system Standard 2U chassis
8 channel FPD LINK III video injection card for HIL simulation
4-channel 1000BASE-T1 Car Ethernet Card HIL acquisition injection

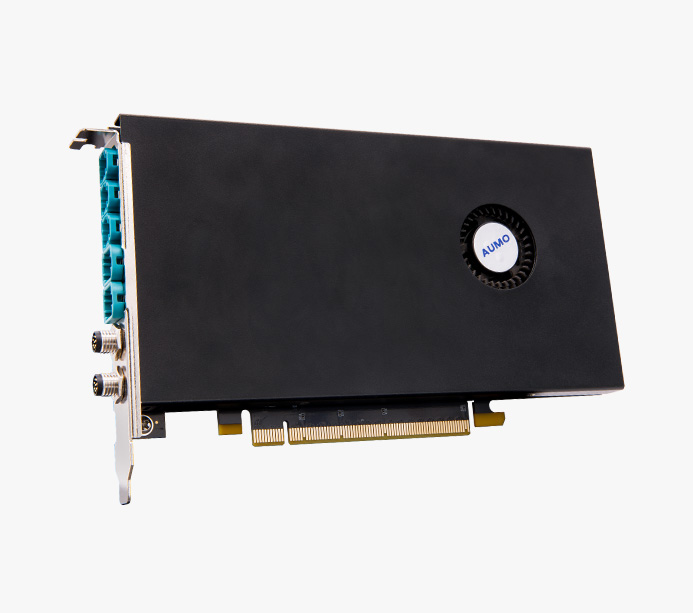

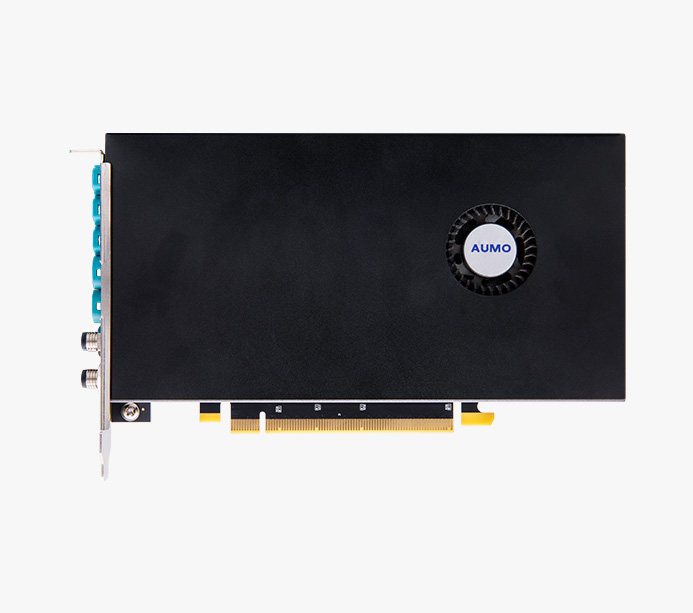

8-channel Autonomous Driving HIL Vehicle Video Injection Card AUSIM GMSL2
The solution for algorithm verification optimization and hardware-in-the-loop (HIL) testing injection requirements in the autonomous driving industry can enable multi-board parallel expansion of more injection channels
4096x 2160@30fps Output videos that support GPU graphics card simulation rendering
Supports dual card parallelism and achieves 16 channel synchronous reinjection
Supports gPTP timing timestamp with an accuracy of less than 1ms
Supports Linux/Window dual systems and supports secondary SDK development
Supports YUV422 and RAW12
High bandwidth data transmission
Can perform real-time or offline high-precision 16 channel synchronous playback of data
Support parsing of multiple types of sensors
Independent research and technical support, one-stop response to demand, supporting customized development
Independently configure multiple triggering methods, customize signals, etc
Solution for hardware in the loop testing HIL, which can achieve parallel expansion of multiple boards to increase the number of injection channels.

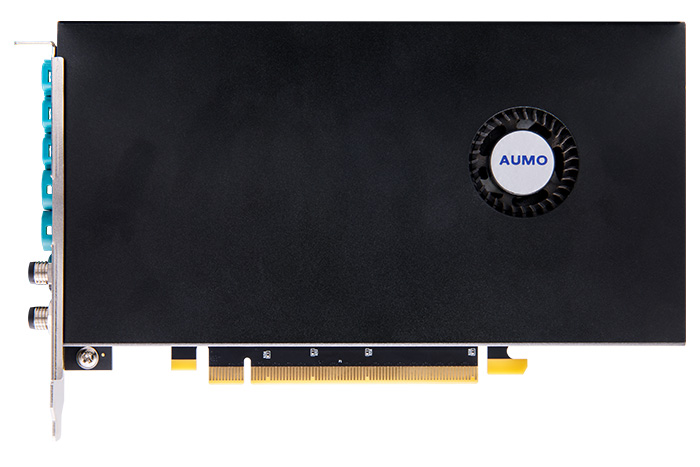

3-way 1000BASE-T1 interface, 2-way 4-in-1 Amphenol mini-Fakra interfaces (8-way video output), and 2 M8 aviation socket (including 8-way CAN/CAN-FD interfaces) are led out at baffle as the external interfaces
Serializer
Supports MAX96717, MAX96717F, MAX9295A, MAX96715, etc
Corresponding deserializer
Support MAX96712, MAX9296A and so on
CAN
8 CAN / CAN-FD interfaces
Number of channels
8-way camera video output
Video format
YUV422、RAW12
PCIE
PCI Express Gen 3 x16
Output Resolution
Supports 8 channels 4096x 2160@30fps Output
FAKRA
4-in-1 Amphenal Z code mini-Fakra
External trigger
Support the synchronization of the external trigger of cameras
Vehicle Ethernet
3× 1000BASE-T1 interface Support gPTP timestamp with time service, with the accuracy of less than 1 ms
Cable length
Under GMSL1 mode can reach 40m (3Gbps)
Under GMSL2 mode can reach 20m(6Gbps)
Upgrade
Support the upgrade of PC firmware
Operating system
Linux/Windows
Working temperature
-40℃～70℃
Storage temperature
-40℃～85℃
Working humidity
10%～90%
Storage humidity
0～90%
Power supply
PCIE Power supply / 12V Power supply
Weight
400g
Size
Length* Width：111.15 * 189.99（mm）
MTBF
5 years
Static power consumption
9.46W
Dynamic power consumption
22.15W

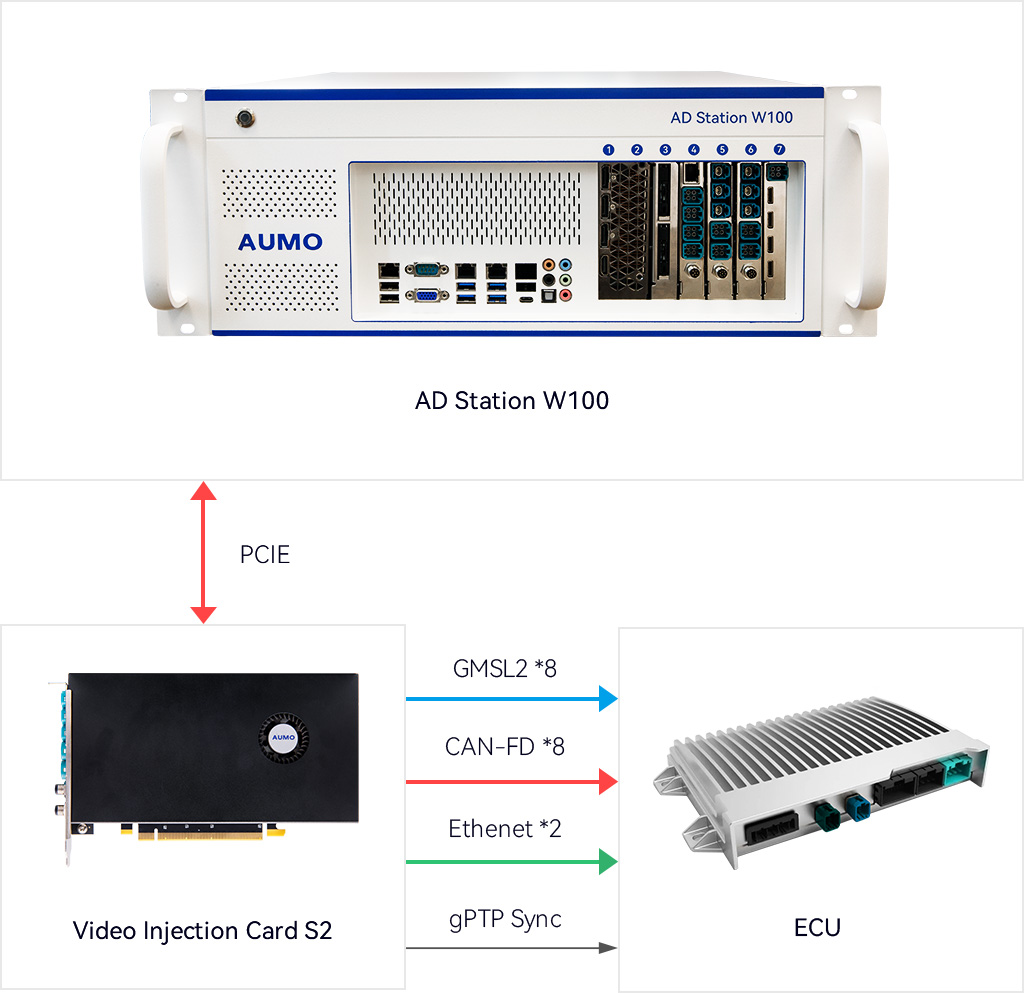

AD Station W100 is a research and development platform for autonomous vehicle acquisition, calculation, and hardware in the loop simulation testing of HIL. It can be paired with 16 channel in car camera GMSL acquisition card A16, 8 channel in car video injection card S2, and 4 channel in car video injection card S1
Used for video simulation of unmanned driving systems
Video playback for data collection vehicles
Used for ADAS and autonomous driving test system in loop HIL simulation
The warranty period of all products sold is 12 months.
