Autonomous driving desktop 12-channel HDMI video injection system
8 channel FPD LINK III video injection card for HIL simulation
8-channel Autonomous Driving HIL Vehicle Video Injection Card AUSIM GMSL2
4-channel Autonomous Driving HIL Vehicle Video Injection Card AUSIM
Autonomous Driving CAN/CAN-FD Capture Injection Card
The solution for algorithm verification optimization and hardware-in-the-loop (HIL) testing injection requirements in the autonomous driving industry can enable multi-board parallel expansion of more injection channels
4096x 2160@30fps Output videos that support GPU graphics card simulation rendering
Supports dual card parallelism and achieves 16 channel synchronous reinjection
Supports gPTP timing timestamp with an accuracy of less than 1ms
Supports Linux/Window dual systems and supports secondary SDK development
Supports YUV422 and RAW12
High bandwidth data transmission
Can perform real-time or offline high-precision 16 channel synchronous playback of data
Support parsing of multiple types of sensors
Independent research and technical support, one-stop response to demand, supporting customized development

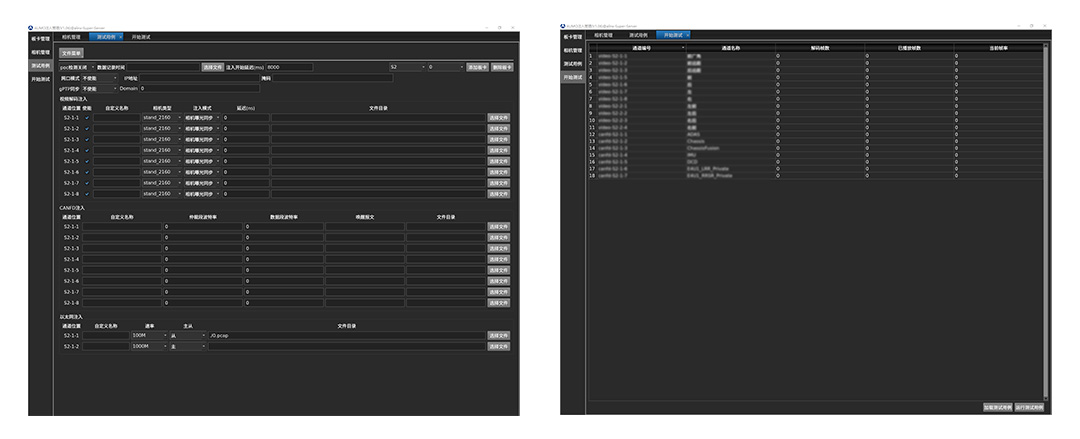

Independently configure multiple triggering methods, customize signals, etc
Hardware in the loop testing HIL solution, which can achieve parallel expansion of multiple boards to increase the number of injection channels
Three 1000BASE-T1 interfaces, two 4-in-1 Amphenol mini Fakra interfaces (8-way video output), and two M8 aviation sockets (including 8-way CAN/CAN-FD interfaces) are introduced at the baffle for external interfaces
Serializer
MAX96717 / MAX96717F / MAX9295A/ MAX96793
Corresponding deserializer
Support MAX96712 / MAX9296A / MAX96792 etc.
Number of channels
8-channel analog GMSL/GMSL2/GMSL3 camera video output
Output resolution
Supports 8 channels 4096 x 2160@30fps Synchronous output
Video Format
YUV422、RAW12
PCIE interface
PCI Express Gen 3 x16 interface
Vehicle Ethernet
Three 1000BASE-T1 interfaces support gPTP timing timestamps with an accuracy of less than 1ms
CAN
8 CAN/CAN-FD interfaces
Upgrade
Support PC firmware upgrade
Operating system
Linux / Windows
FAKRA
4-in-1 Amphenal Z code min-Fakra
Cable length
Up to 18 meters (12Gbps) in GMSL3 mode
Up to 20 meters (6Gbps) in GMSL2 mode
working temperature
-40℃ ~ 70℃
Storage temperature
-40℃ ~ 85℃
Working humidity
10%～90%
Storage humidity
0～90%
Power supply
PCIE power supply / 12V power supply
Weight
400g
Size
Length and width：111.15 * 189.99（mm）
MTBF
5 years
Static power consumption
9.46W
Dynamic power consumption
22.15W

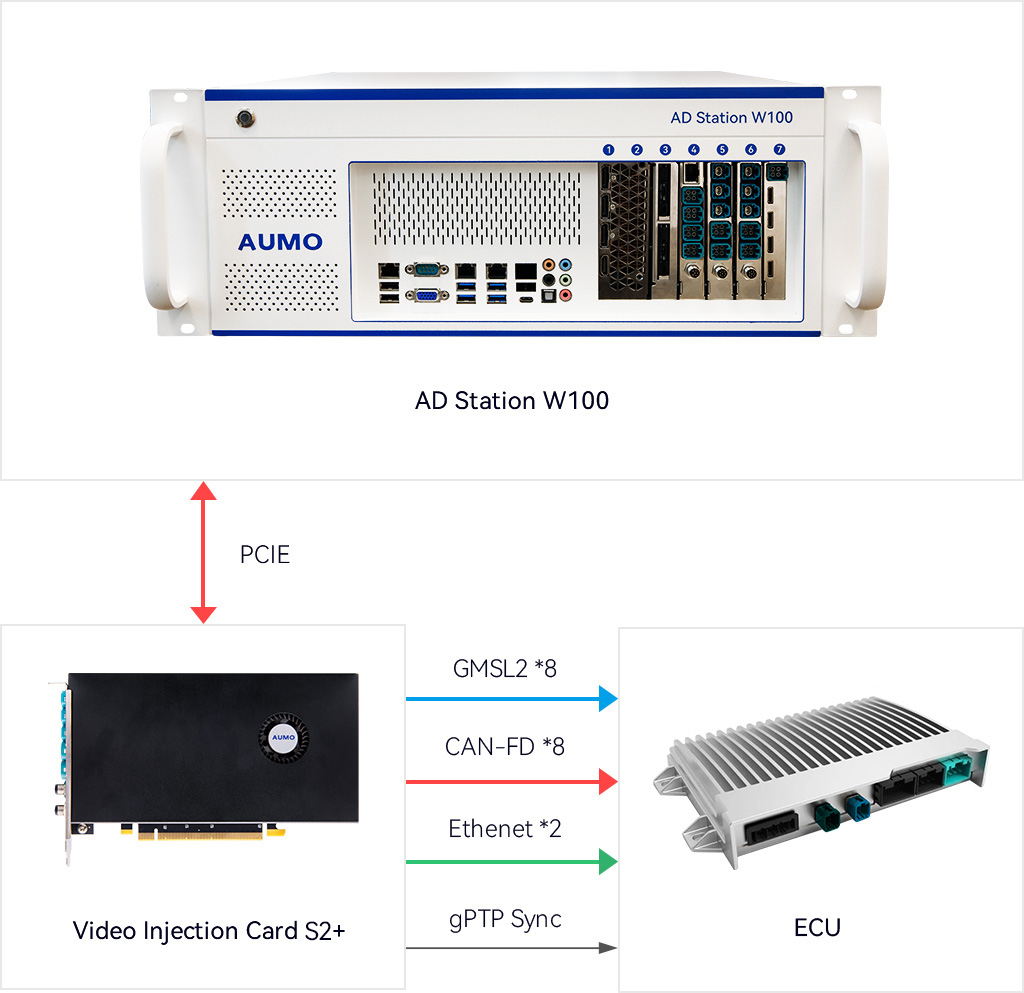

AD Station W100 is a research and development platform for autonomous vehicle acquisition, calculation, and hardware in the loop simulation testing of HIL

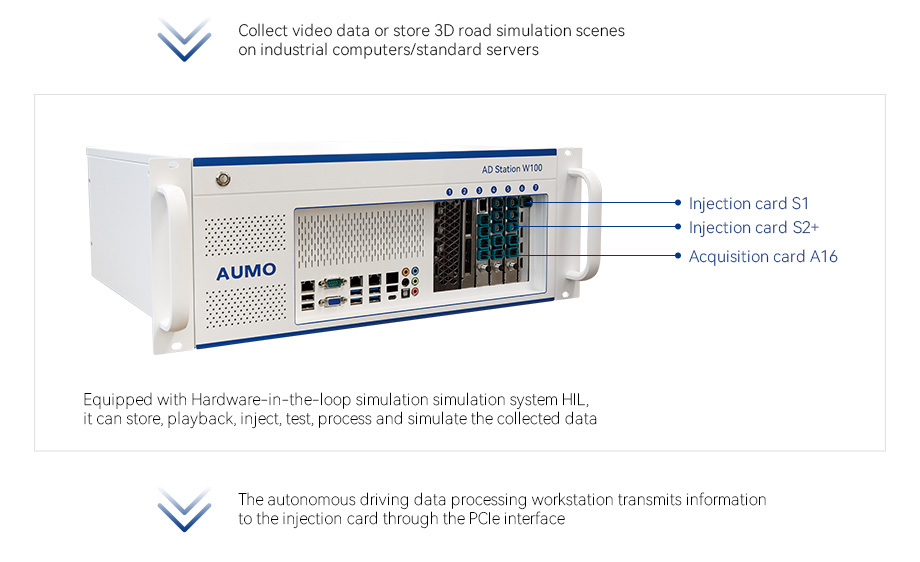

Can be paired with 16 channel car mounted camera GMSL acquisition card A16, 8 channel car mounted video injection card S2+, and 4 channel car mounted video injection card S1

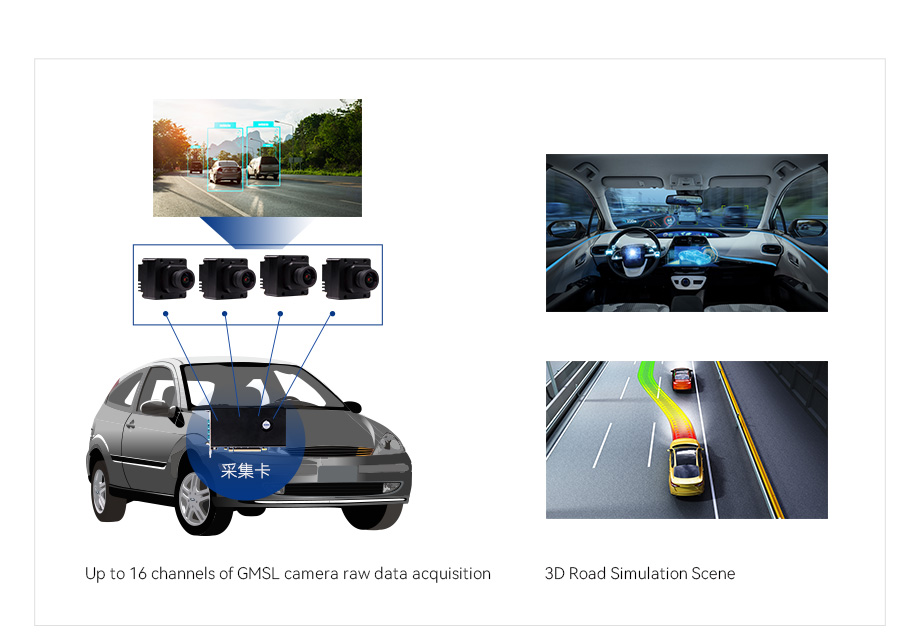

Inject the actual collected data from the road back into the ADCU/ECU to restore the true condition of the road and optimize the algorithm

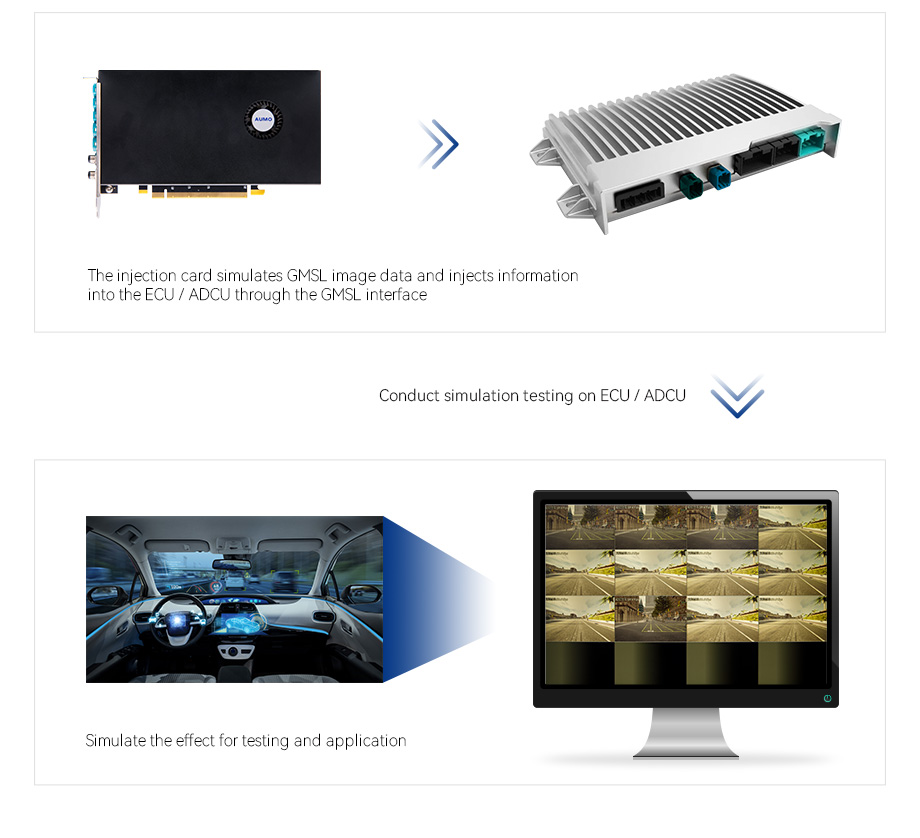

Simulate the car mounted camera and inject the scene data simulated by the software into the ADCU+/+ECU, as well as the road information of the virtual vehicle
