Model
BZ701Price
$ 3962
4-channel 1000BASE-T1 in car Ethernet Card Acquisition and Injection Simulation Development and Testing
Autonomous driving desktop 12-channel HDMI video injection system W50 recharge injection hardware-in-the-loop simulation test HIL
Autonomous Driving CAN/CAN-FD Capture Injection Card
4-channel Autonomous Driving HIL Vehicle Video Injection Card AUSIM
8-channel Autonomous Driving HIL Vehicle Video Injection Card AUSIM GMSL3
Can be used for capturing, saving, analyzing, injecting and simulating CAN/CAN-FD bus protocols in vehicles that require a large number of CAN interfaces
Meet a large number of CAN/CAN-FD bus interface requirements
High bandwidth data transmission

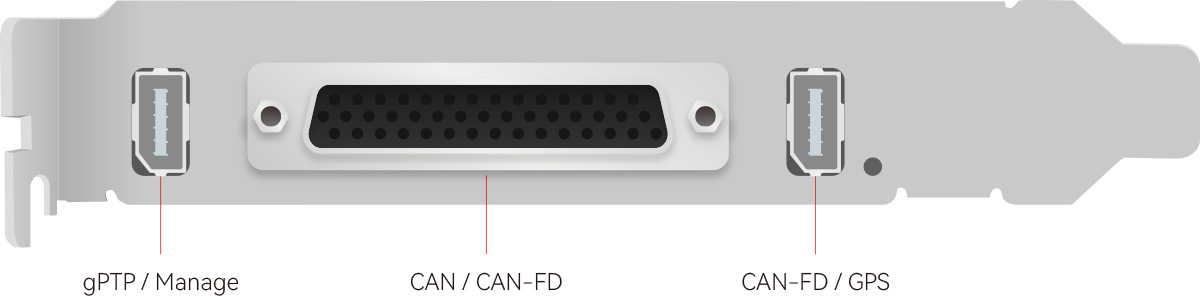

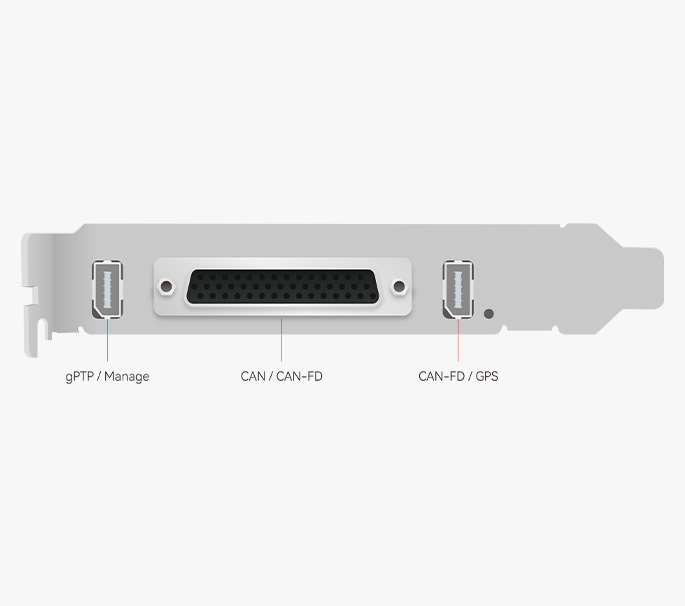

Using DB44 plug to lead out CAN interface terminal block

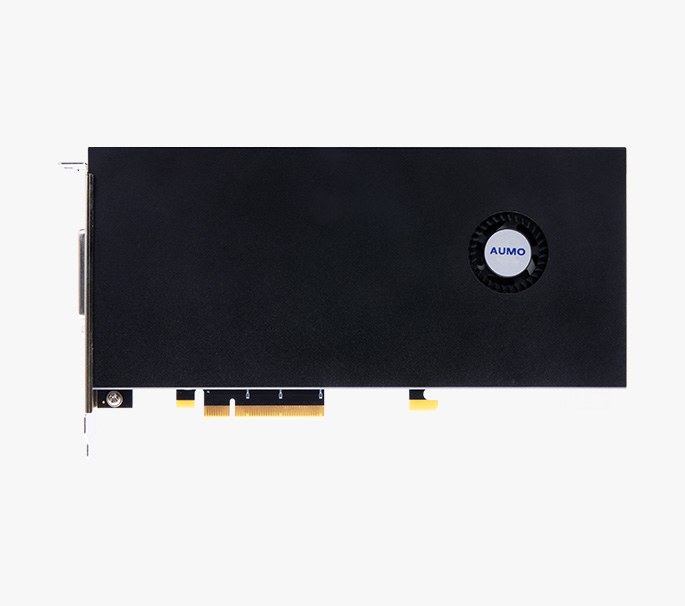

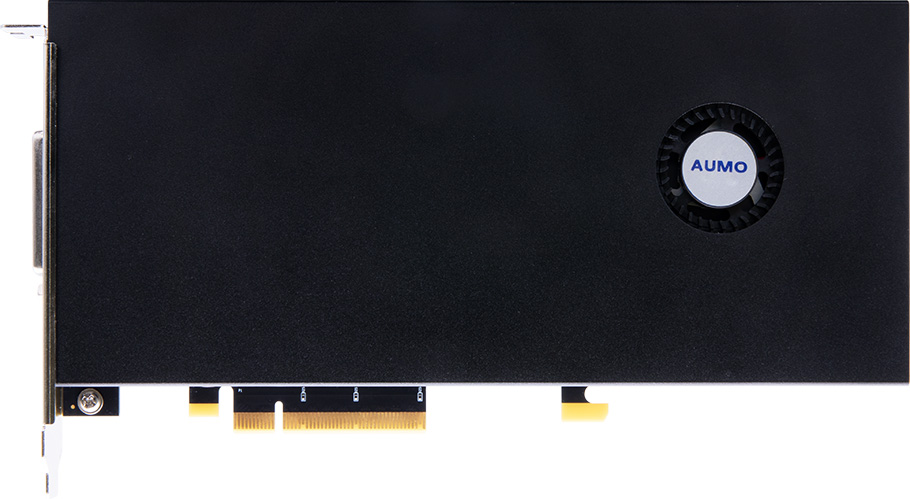

PCIE
PCI Express Gen 3 x8
Number of CAN-FD channels
20
CAN-FD standard
ISO
CAN-FD arbitration ID segment baud rate
40K~1Mbps
CAN-FD data segment acceleration baud rate
100K~5Mbps
CAN-FD receiving capability
25700 frames per second (per channel)
CAN-FD transmission capability
25700 frames per second (per channel)
Operating system
Linux system
upgradation
Support PC firmware upgrade
120 ohm terminal resistor
Jumping Hat
operation temperature
-40℃～70℃
Working humidity
10%～90%
Linux system
Tested Linux kernel version： UBuntu16-linux4.15.0-142、UBuntu18-linux5.4.0-144、UBuntu20-linux5.15.0-67
Functional support
Standard can/canfd devices under Linux
Common operations
Sudo ip link set canX down
Sudo ip link set canX up type can bitrate 500000 sample-point 0.8 dbitrate 2000000 dsample-point 0.8 fd on restart-ms 100
Power consumption
18.78W
Used for CAN/CAN-FD bus data acquisition of the entire vehicle
Used for simulating and injecting CAN/CAN-FD bus data for the entire vehicle
Hardware in the loop simulation HIL for ADAS, autonomous driving, and intelligent cockpit testing systems
