Model

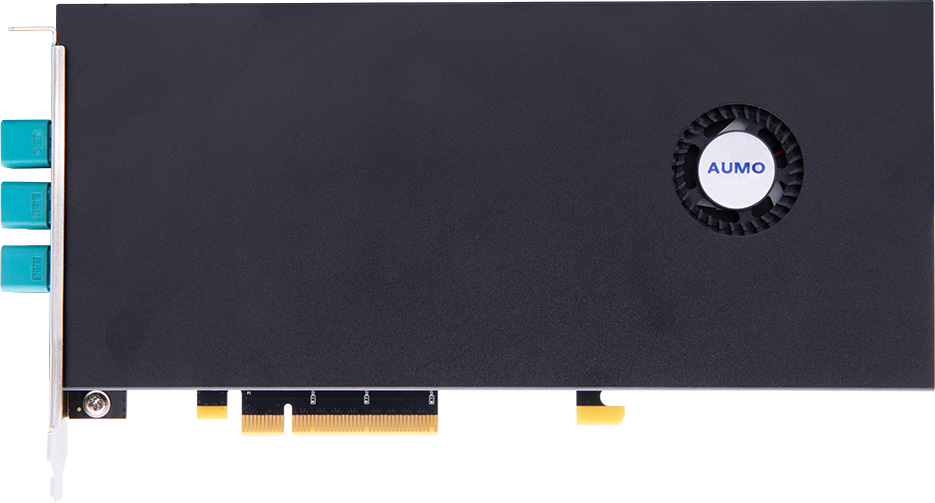

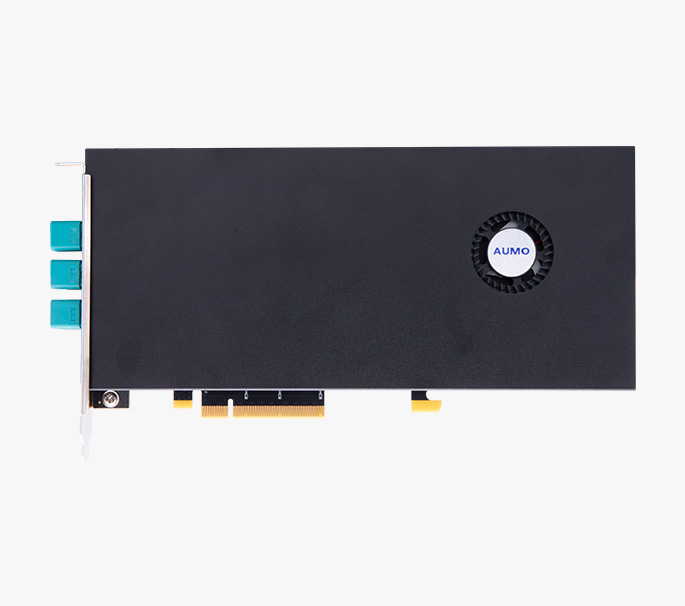

BZ703Through one PCIE 3.0 X8 interface, 12-channel FPD LINK III camera video capture is achieved, which is the solution for IPC automatic driving of industrial control computers
Support up to 12-way MIPI CSI-2 camera input
Supports up to 12-channel 4MP/30fps resolution cameras
PCI Express Gen3 x8
Support for Linux operating system, driven by V4L2 framework

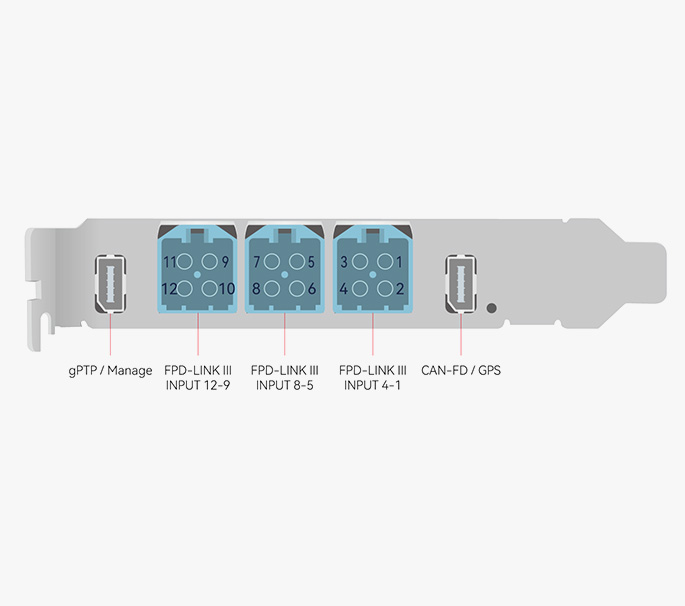

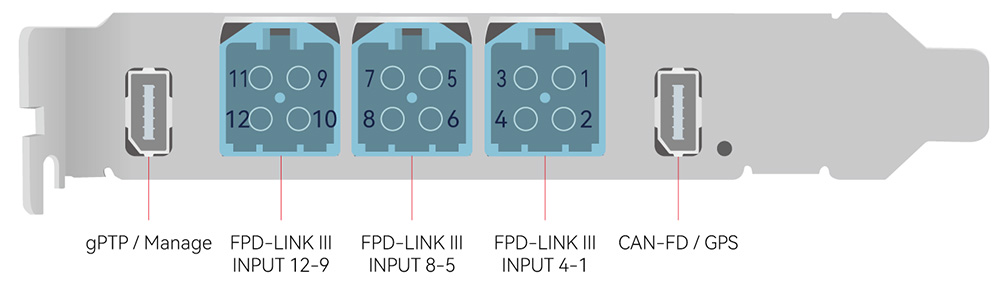

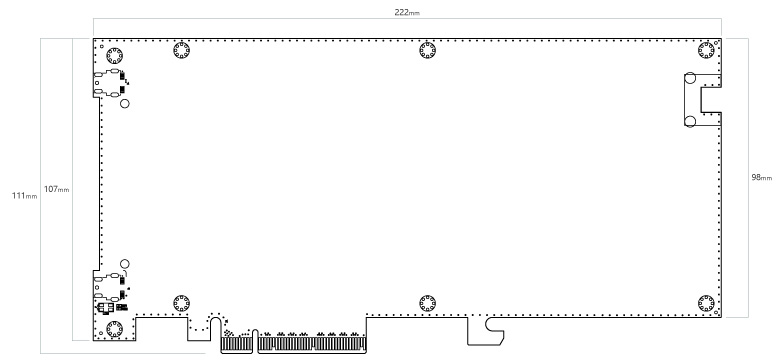

The external interface leads out three four in one Fakra interfaces (12 video channels), one Ethernet interface, and one CANFD+GPS interface at the baffle
Serialize
Support DS90UB953 ect
Deserializer
DS90UB954
PCIE
PCI Express Gen3 x8
Number of channels
12 channel camera MIPI CSI-2 input
Video format
YUV422、RGB888、RAW12
FAKRA
4-in-1 Amphenal Z code mini-Fakra
External trigger
Support the synchronization of the external trigger of cameras
Cable length
15m
Architecture
Support V4L2 software architecture
Upgrade
Support the upgrade of PC firmware
Power supply
PCIE Power supply / 12VPower supply
GPS
Support GPS timing synchronization
CANFD
CAN/CAN-FD bus communication
I/0 interface
TTL trigger, GPS
Working temperature
-40℃~70℃
Storage temperature
-40℃~85℃
Working Humidity
10%～90%
Storage Humidity
0～90%
MTBF
5 years
Weight
400g
Host system
The Linux kernel version has tested： UBuntu16-linux4.15.0-142、UBuntu18-linux5.4.0-144、UBuntu20-linux5.15.0-67
Functions
Support Linux operating system and be driven with V4L2 framework;
Support to connect the peripherals with AXI interfaces, and support to disconnect the
peripherals with MSI;
Support standard IIC devices;
Support USERPTR and MMAP under the memory mode;
Support the camera configuration and query through IIC bus;
Common operations
VIDIOC_DQBUF, VIDIOC_QBUF
VIDIOC_STREAMOFF, VIDIOC_STREAMON
VIDIOC_REQBUFS, VIDIOC_QUERYBUF
VIDIOC_QUERYCAP, VIDIOC_QUERYCTRL
VIDIOC_G_PARM，VIDIOC_S_PARM
VIDIOC_G_FMT, VIDIOC_S_FMT
VIDIOC_G_CTRL，VIDIOC_S_CTRL
Item
Power Consumption（W）
Mark
Static power consumption
18.78
The camera module is not accessed
Dynamic power consumption
47.75
The camera module is accessed
Used for video capture and transmission of cameras of ADAS and auto drive system
Camera Video Acquisition and Transmission for Data Acquisition Vehicles
Video capture for simulating injection testing systems
Used for intelligent cockpit information, navigation, and entertainment display systems
