Model

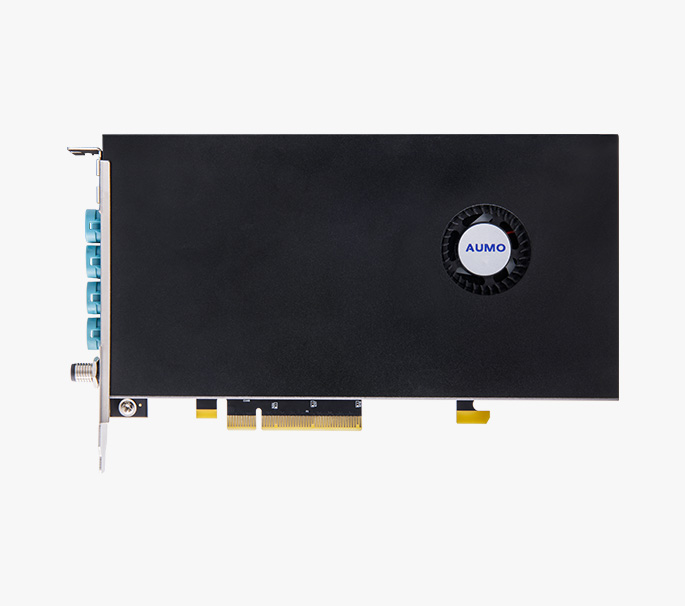

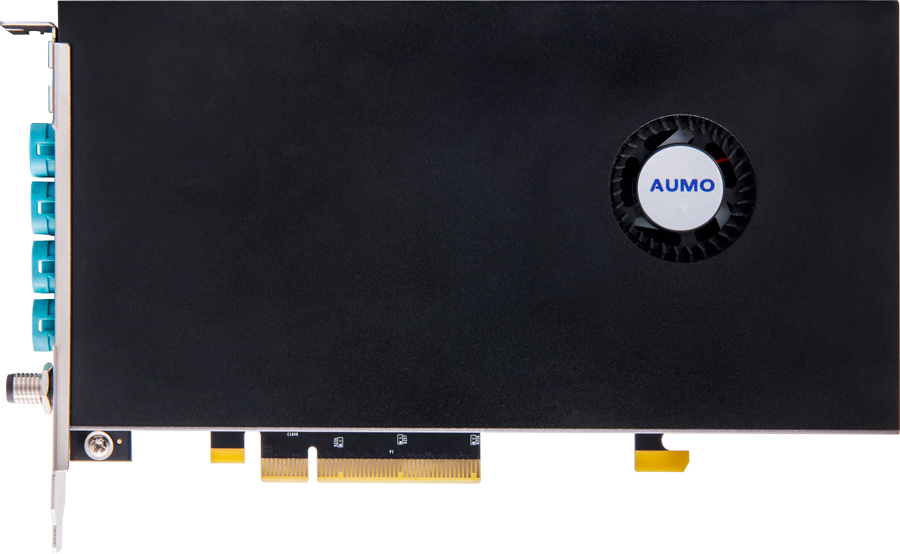

A8Through one PCIE 3.0 X8 interface, 8-channel camera video capture is achieved, providing PTP timestamp function to ensure the synchronization of 8-channel video data, which is the solution for IPC automatic driving of industrial control computers
Support up to 8-way GMSL1/2 camera input
Supports up to 8-channel 8MP resolution cameras
PCIE3.0 x8
Support for Linux operating system, driven by V4L2 framework
Scheme of capture and calculation platform for autonomous vehicles

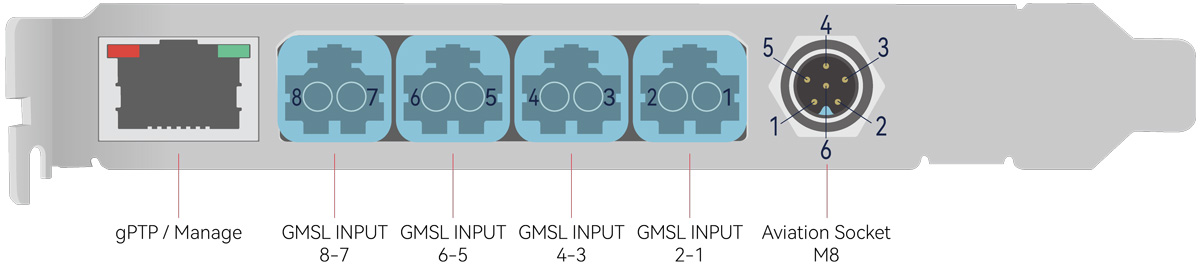

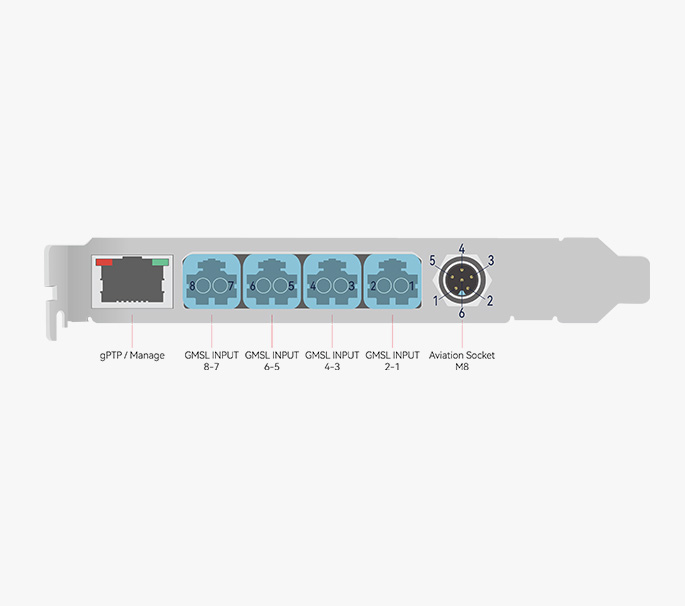

1 Gigabit Ethernet, 4-way 2-in-1 Fakra interfaces (8-way for video capture) and 1 aviation socket M8 are led out at the baffle as the external interfaces
Serializer
Support MAX96705/MAX9295A/MAX96717F/MAX96717 ect
Deserializer
MAX9296A
Number of channels
8-way cameras input
Input Resolution
Supports up to 8-channel 8MP resolution cameras
Video format
YUV422、RGB888、RAW12
PCIE
PCI-Express Gen 3 x8
Bus
Support GMSL1 / GMSL2
FAKRA
2-in-1 Amphenal Z code mini-Fakra
Cable length
Under GMSL1 mode can reach 40 m（3Gbps）
Uncle GMSL2 mode can reach20m（6Gbps）
Web-site
10/100/1000M Adaptive Support gPTP timestamp with time service, with the accuracy of less than 1 ms
CAN/CAN-FD
1-channel
GPS
Support GPS timing synchronization
External trigger
Support the synchronization of the external trigger of cameras
I/0 Interface
TTL trigger,GPS
Upgrade
Support the upgrade of PC firmware
Architecture
Support V4L2 software architecture
POC Power supply
Single channel Max 1A@12V
Power supply
PCIE Power supply / 12VPower supply
Working temperature
-40℃ ~ 70℃
Storage temperature
-40℃ ~ 85℃
Working Humidity
10%～90%
Storage Humidity
0～90%
Weight
400g
Size
Length* Width：111.15 * 189.99（mm）
MTBF
5 years
Host system
The Linux kernel version has tested： UBuntu16-linux4.15.0-142、UBuntu18-linux5.4.0-144、UBuntu20-linux5.15.0-67
Functions
Support Linux operating system and be driven with V4L2 framework;
Support to connect the peripherals with AXI interfaces, and support to disconnect the
peripherals with MSI;
Support standard IIC and UART equipment;
Support USERPTR and MMAP under the memory mode;
Support the camera configuration and query through IIC bus;
Common operations
VIDIOC_DQBUF, VIDIOC_QBUF
VIDIOC_STREAMOFF, VIDIOC_STREAMON
VIDIOC_REQBUFS, VIDIOC_QUERYBUF
VIDIOC_QUERYCAP, VIDIOC_QUERYCTRL
VIDIOC_G_PARM，VIDIOC_S_PARM
VIDIOC_G_FMT, VIDIOC_S_FMT
VIDIOC_G_CTRL，VIDIOC_S_CTRL
Item
Power Consumption（W）
Mark
Static power consumption
16
The camera module is not accessed
Dynamic power consumption
32
The camera module is accessed

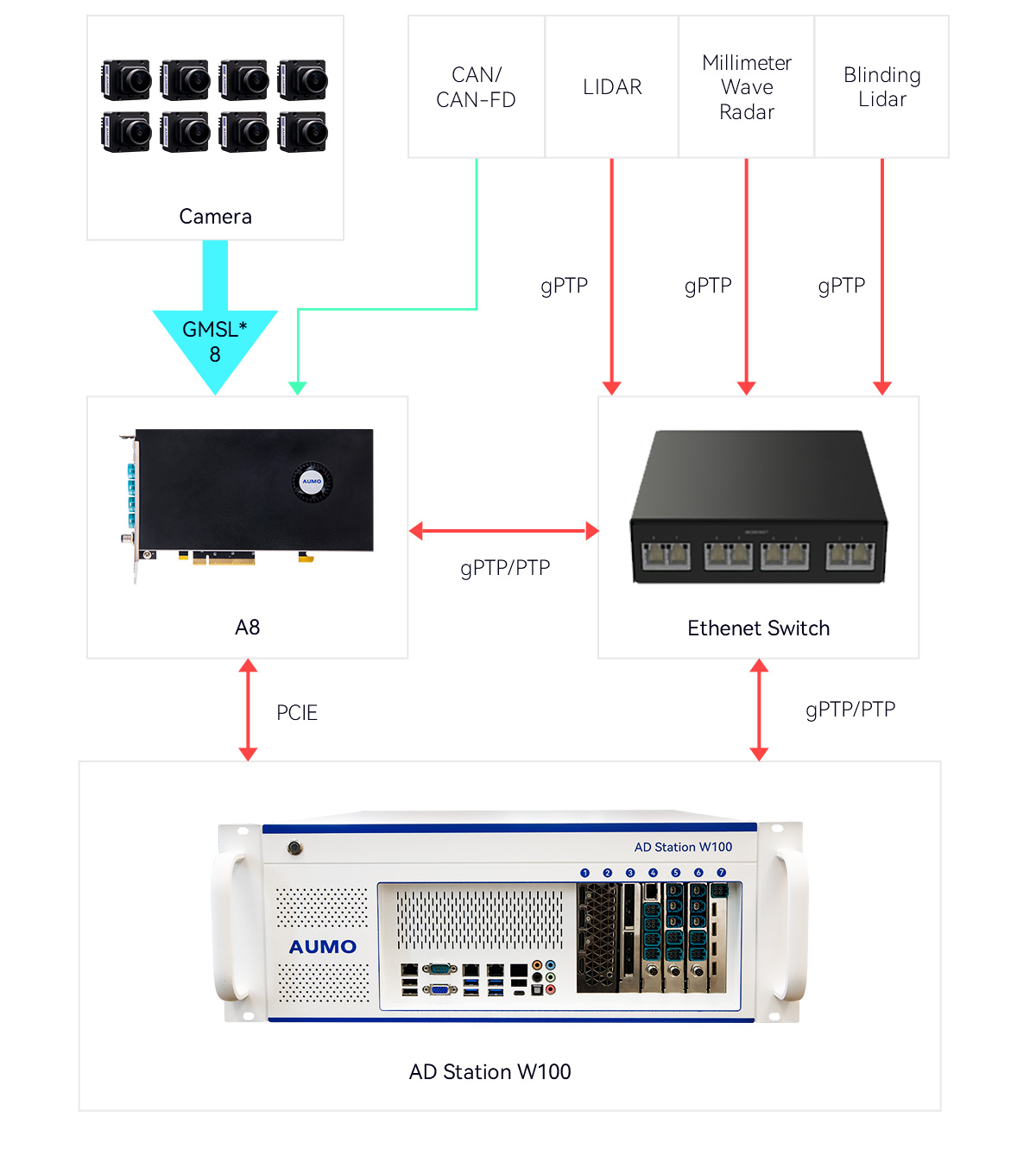

AD Station W100 is a research and development platform for autonomous vehicle acquisition, calculation, and hardware in the loop simulation testing of HIL. It can be paired with 16 channel in car camera GMSL acquisition card A16, 8 channel in car video injection card S2, and 4 channel in car video injection card S1
Video capture and transmission for unmanned aerial system camera
Camera Video Acquisition and Transmission for Data Acquisition Vehicles
For video restore after camera is connected to ADAS, Autopilot Test System
Multi-angle monitoring of vehicle power exchange behavior, real-time data upload to the host for analysis and processing
The warranty period of all products sold is 12 months.
