Model
B8Temperature class
-40℃ ~ 70℃Price
$ 13208A Solution for Diverting and Collecting Multiple Cameras for Autonomous Driving
Supports 8-channel GMSL2/GMSL3 camera acquisition
Supports up to 8 channels of 8MP resolution camera bypass output
PCIE3.0 X8
Support Linux operating system, using V4L2 framework driver
gPTP timing timestamp with accuracy less than 1ms
Support YUV422, RGB888, RAW12 video formats

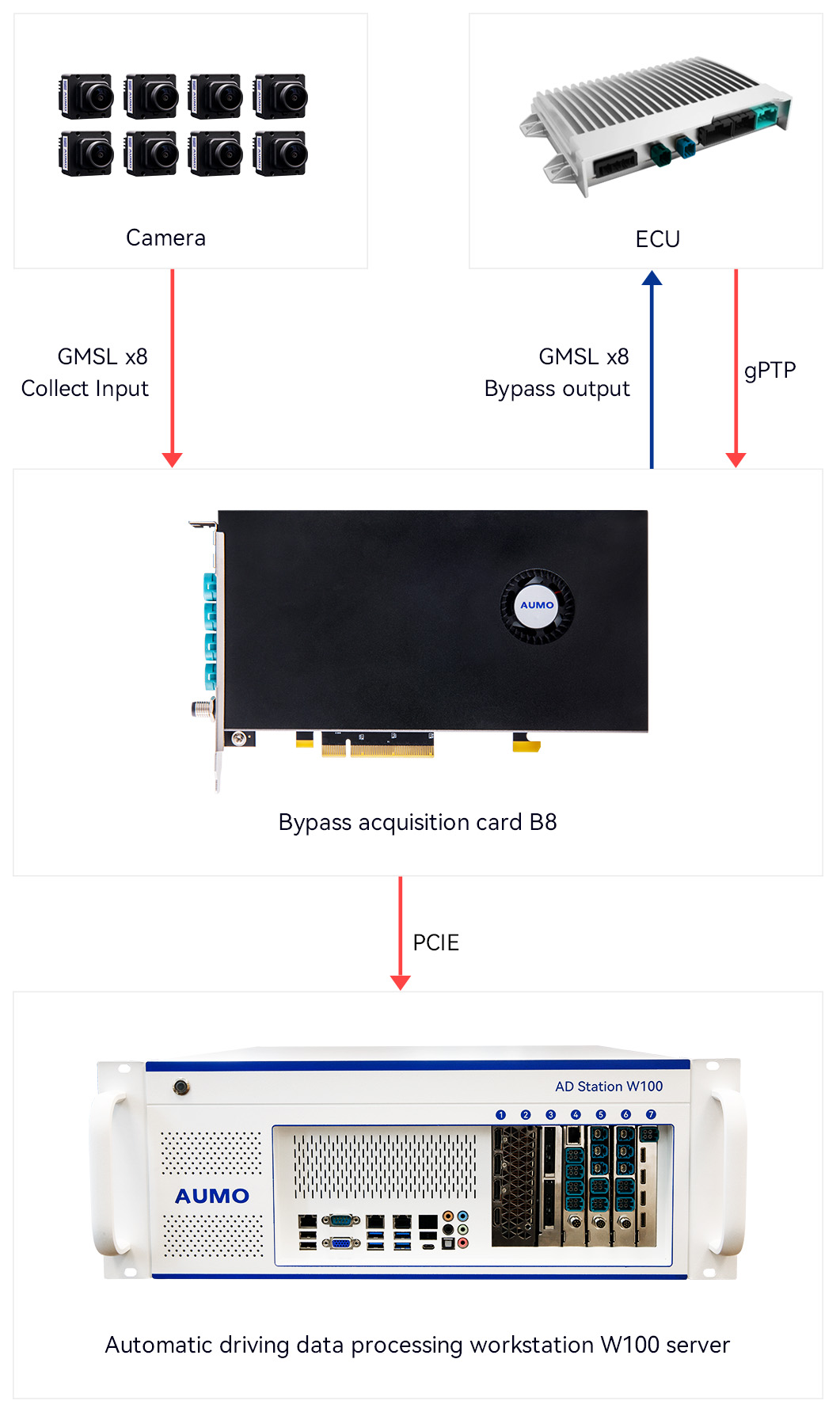

Scheme of Automatic Driving Vehicle Diversion Collection and Calculation Platform
At the baffle, a total of 1 channel of Gigabit Ethernet is led out for gPTP synchronization and board management, 4 4-in-1 Fakra interfaces lead out 8 channels of GMSL input and 8 channels of GMSL bypass output, and 1 aviation socket M8 leads out 4 channels of CAN-FD interface.
Serializer
MAX9295A
DESerializer
MAX9296A
I2C/GPIO
Supports I2C and GPIO transparent transmission
Number of channels
8-channel camera bypass and acquisition
Video
YUV422、RGB888、RAW12
PCIE
PCIE 3.0 X 8
Output Resolution
four thousand and ninety-six × 2160@30fps Supports up to 8 channels
network
10/100/1000M adaptive, supporting gPTP timing timestamp, with an accuracy of less than 1ms
POC power supply
Single channel Max 1A@12V
Length
Up to 40 meters (3Gbps) in GMSL1 mode
Up to 20 meters (6Gbps) in GMSL2 mode
Upgrade
Support PC firmware upgrade
Architecture
Support for V4L2 software architecture
FAKRA
4 in 1 Amphenal Z code mini-Fakra
operation temperature
-40℃ ~ 70℃
storage temperature
-40℃ ~ 85℃
Working humidity
10%～90%
Storage humidity
0～90%
Power supply
PCIE power supply/12V power supply
Weight
450g
Size
111.15 * 190（mm）
MTBF
5 year
host system
Tested Linux kernel version： UBuntu16-linux4.15.0-142、UBuntu18-linux5.4.0-144、UBuntu20-linux5.15.0-67
Functional support
Support Linux operating system and use V4L2 framework driver;
Support AXI interface extension of peripherals and support the use of MSI interrupts by peripherals;
Support standard IIC and UART devices;
Memory mode supports USERPTR and MMAP;
Support camera configuration and query operations through IIC bus;
Common operations
VIDIOC_DQBUF, VIDIOC_QBUF
VIDIOC_STREAMOFF, VIDIOC_STREAMON
VIDIOC_REQBUFS, VIDIOC_QUERYBUF
VIDIOC_QUERYCAP, VIDIOC_QUERYCTRL
VIDIOC_G_PARM，VIDIOC_S_PARM
VIDIOC_G_FMT, VIDIOC_S_FMT
VIDIOC_G_CTRL，VIDIOC_S_CTRL
project
consumption（W）
notes
Static power consumption
18.78
Not connected to camera module
Dynamic Power
35.42
Connect 8 camera modules
AD Station W100 is a research and development platform for autonomous vehicle acquisition, calculation, and hardware in the loop simulation testing of HIL. It can be paired with 16 channel in car camera GMSL acquisition card A16, 8 channel in car video injection card S2, and 4 channel in car video injection card S1
After the camera video is collected, it is stored on the disk to provide data support for subsequent algorithm simulation and restoration
The onboard splitter card splits the camera output to the ECU and stores the video data on the disk
The warranty period of all products sold is 12 months.
