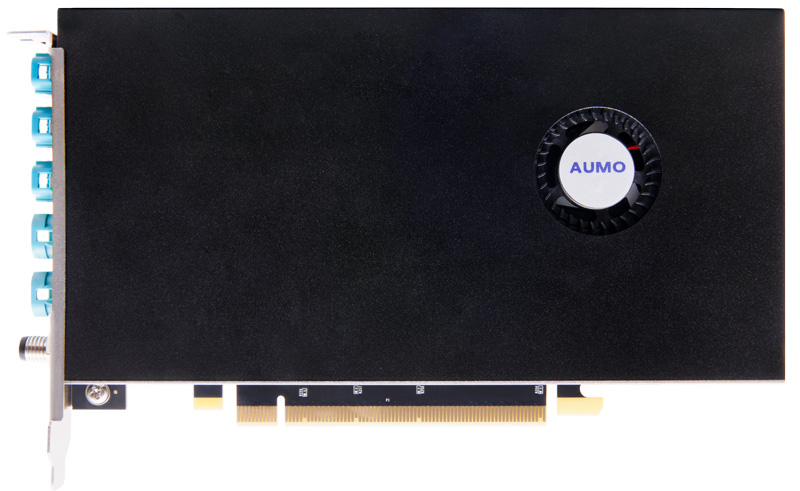

【 Heavyweight New Product 】 AUMO Launches Hardware in the Loop Simulation Test for Autonomous Driving HIL GMSL3 Standard Video Data Injection Reinjection Card

AUMO caters to the industry's demand for high-speed GMSL3 and keeps up with industry development. In the loop simulation testing of autonomous driving hardware, HIL GMSL3 standard video data is injected back into the injection card.

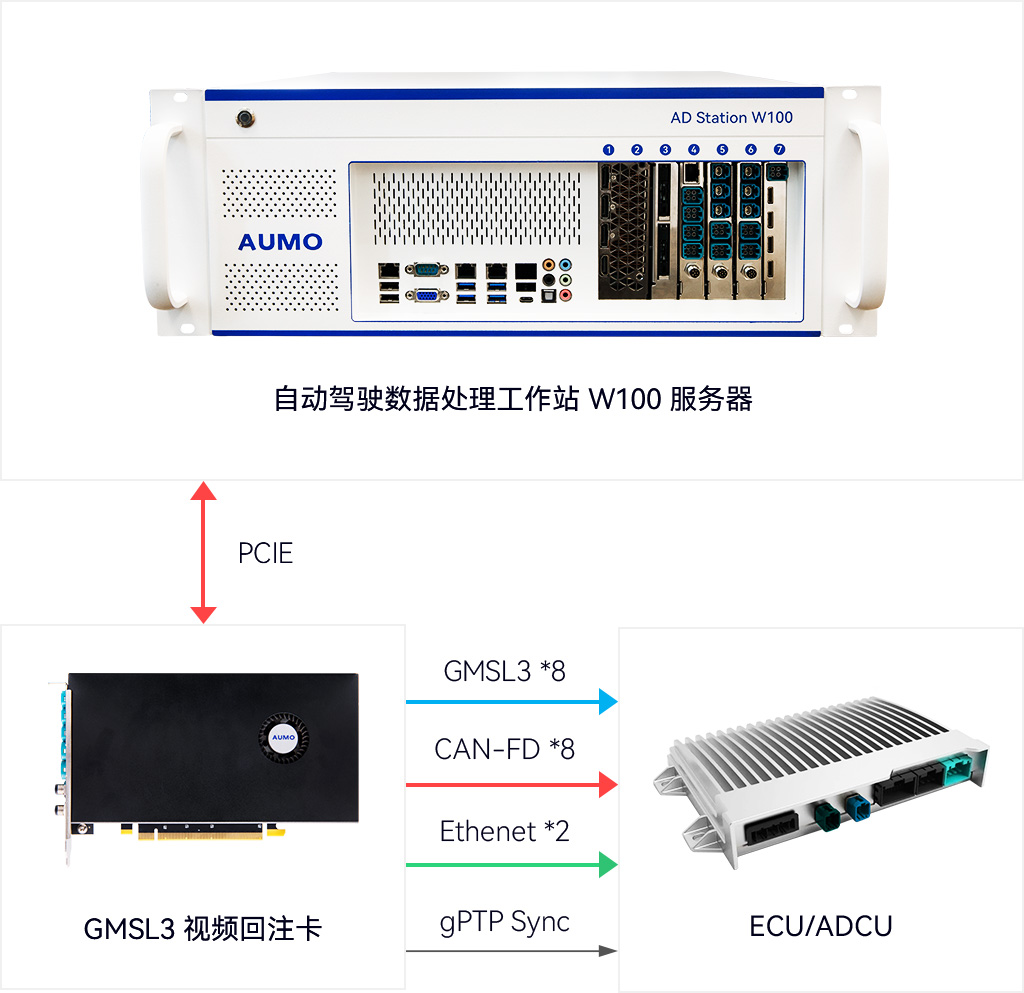

The autonomous driving industrial control computer will transmit the video data collected from the falling disk to the reinjection card through the PCIe interface. The reinjection card will synchronously output 8 channels of video according to the timestamp, simulate the camera timing, and transmit the data to the ADCU/ECU for reinjection through the GMSL interface, with 3 channels of 1000BASE-T1 and 8 channels of CAN/CAN-FD, and provide gPTP timestamp synchronization function to ensure high-precision synchronization output of multi-channel data, Support industrial computers/standard servers to implement hardware in the loop simulation HIL system, data acquisition and feedback system, and video playback system.

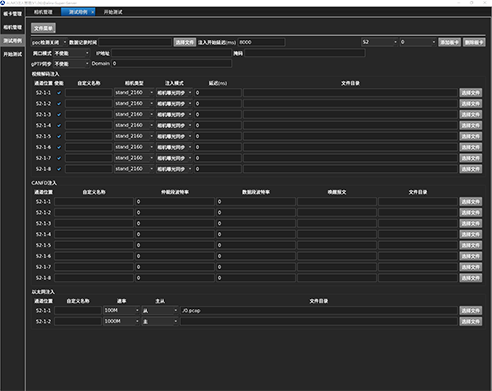

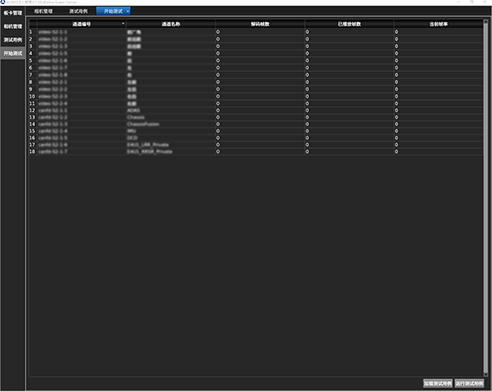

Independently developed supporting video injection recharge software, deeply adapted for autonomous driving HIL testing. Support parsing of multiple types of sensors, autonomously configure multiple triggering methods, customize signals, etc., provide one-stop response to requirements, and support customized development.

Mainly used in automotive autonomous driving hardware in the loop simulation testing of HIL, ADAS, drones, unmanned vehicles and other fields.
