AUMO has launched multiple intelligent driving system products, including autonomous driving hardware in the loop simulation HIL, 16 channel in car camera video acquisition and processing system, 12 channel HDMI video injection system, 16 channel PCIE video injection and feedback system, electronic rearview mirror CMS and other products and solutions.

Hardware in the Loop (HIL) simulation for autonomous driving

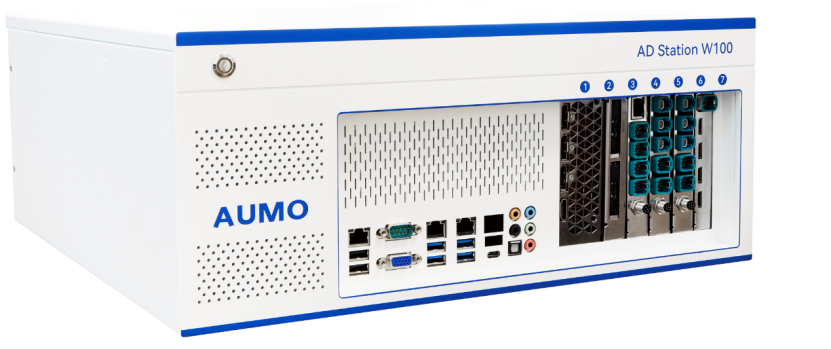

The autonomous driving data processing workstation AD Station W100 can achieve functions such as video data acquisition and injection. Customers can deploy the simulation software environment to the W100 server to build a more comprehensive hardware in the loop simulation testing environment. By combining programmable FPGA, powerful data acquisition and processing capabilities, the system can achieve synchronous reinjection of multi-channel data acquisition and virtual scene data, adapt to various mainstream serial and deserialization chips, and flexibly adapt to different autonomous driving schemes.

（AD Station W100）

channel vehicle mounted camera video acquisition and processing system

A highly integrated system product that meets the data acquisition needs of up to 16 cameras for autonomous driving. It uses AUMO's self-developed 16 channel GMSL acquisition card A16 and achieves 16 camera video acquisition through PCIe 3.0 * 16 interface. The synchronization of frequency data is ensured through PTP timestamp function, supporting Windows and Linux systems. It is an ideal choice for industrial computer IPC autonomous driving solutions.

（channel vehicle mounted camera video acquisition and processing system）

12 channel HDMI video injection system

A system product designed for algorithm verification and optimization needs in the autonomous driving industry, using AUMO's self-developed 4-channel GMSL video injection card S1, which can achieve up to 12 channels of GMSL 8M camera video injection, and provides PTP timestamp synchronization function to ensure the synchronization of multi-channel data. It supports industrial computers/standard servers to achieve hardware in the loop simulation of HIL systems.

（12 channel HDMI video injection system）

16 channel PCIE video injection recharge system

A system product designed for algorithm verification and optimization needs in the autonomous driving industry, using AUMO's self-developed 8-channel GMSL video injection card S2, which can achieve up to 16 channels of video data injection. It also supports 8-channel CAN/CANFD and 6-channel 1000M Base-T1 in car Ethernet data injection, and provides PTP timestamp synchronization function to ensure the synchronization of multi-channel data. It supports industrial control computers/standard servers to achieve hardware in the loop simulation of HIL systems.

（16 channel PCIE video injection recharge system）

Electronic rearview mirror CMS solution

A programmable computing solution based on AMD Xilinx FPGA, suitable for image processing operations, effectively solving latency problems. 12.3-inch LCD screen, standard for vehicle grade use, the screen can be divided to display multiple camera images. Supports 2 GMSL1/2 camera inputs, up to 8MP cameras.

（Electronic rearview mirror CMS solution）

8-channel autonomous driving HIL video injection card S2

Through the PCIe 3.0 * 16 interface, 8-channel video, 3-channel 1000 BASE-T1, and 8-channel CAN/CAN-FD data ECUs can be injected and injected back, and gPTP timestamp synchronization function is provided to ensure the synchronization of multi-channel data. It supports industrial computers/standard servers to achieve hardware in the loop simulation of HIL systems.

（8-channel autonomous driving HIL video injection card S2）

4-channel autonomous driving HIL video injection card S1

The product supports 4-channel HDMI video signal input to ECU for injection, and supports gPTP timing timestamp with an accuracy of less than 1ms, ensuring the synchronization of multi-channel data. It also supports hardware in the loop simulation of HIL systems.

（4-channel autonomous driving HIL video injection card S1）

16 channel on-board GMSL video capture card A16

To meet the data acquisition requirements of autonomous driving cameras, 16 channels of camera video acquisition are achieved through PCIe 3.0 * 16 interface, supporting up to 8 channels of 8MP resolution cameras, and providing PTP timestamp function to ensure the synchronization of 16 channels of video data, making it an ideal choice for industrial computer IPC autonomous driving solutions.

（16 channel on-board GMSL video capture card A16）

8-way car mounted camera GMSL2 bypass acquisition card B8

The autonomous driving multi-channel camera diversion acquisition single card solution, through the PCIe 3.0 * 8 interface, achieves 8-way camera video bypass acquisition and provides PTP timestamp function with an accuracy of less than 1ms, ensuring the synchronization of 8-way video data. It is an ideal choice for industrial computer IPC autonomous driving solutions.

（8-way car mounted camera GMSL2 bypass acquisition card B8）
