Mainly used for aging testing of sensor, radar, camera, ECU and other equipment in the L2/L2+ECU solution for integrated parking, highly integrated, high-efficiency FPGA algorithm recognition and judgment, 16 channel video processing, supporting up to 112 video acquisition and processing, and supporting SDK secondary development
Supports 112 video channel inputs and up to 56 channel 8M camera inputs simultaneously
Video data is recognized and judged through FPGA algorithms, and a single FPGA can process 16 video channels
Supports up to 8-way 8M and 8-way 2M cameras or 16 way 2M camera inputs
The number of PCIe acquisition cards can be increased or decreased according to the number of tests, supporting up to 7 PCIE acquisition cards
Provide SDK support for secondary development and can interface with the mesh system for result uploading (customization required)
Server level, capable of long-term operatio

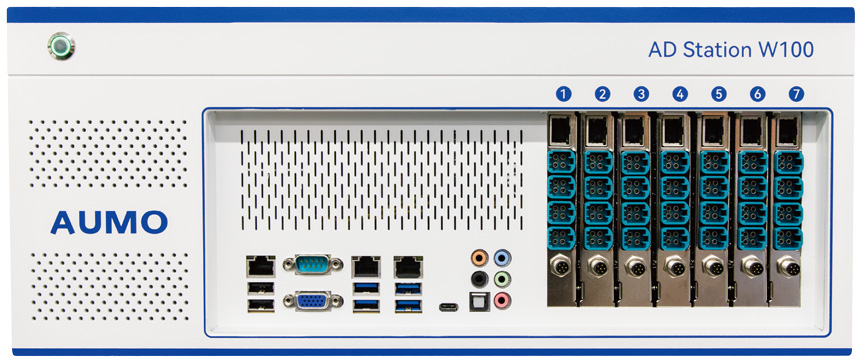

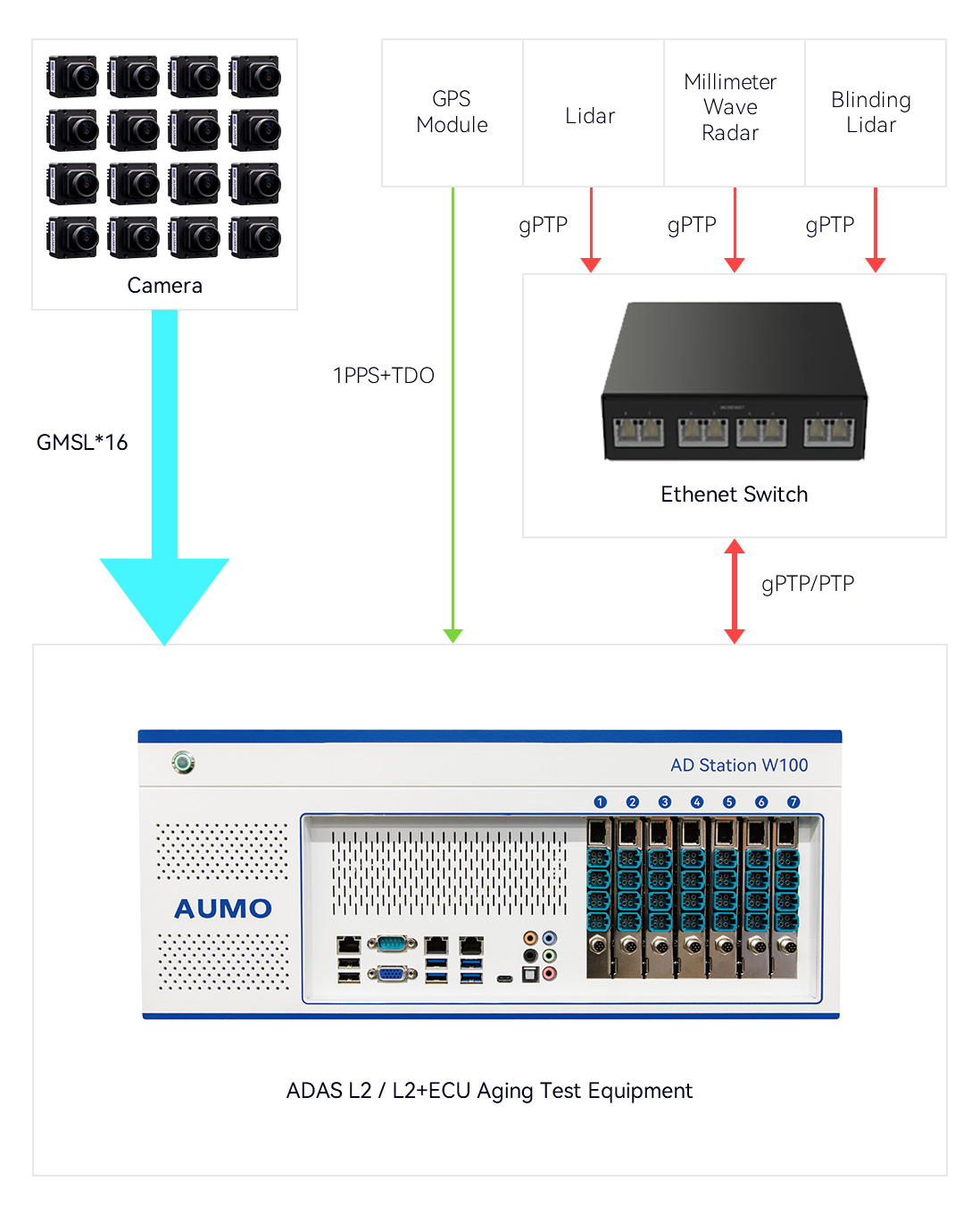

Aging test plan for L2/L2+ECU cameras, radars, and other equipment for integrated parking and transportation
Single board leads out 1 Gigabit Ethernet, 4x 4-in-1 Fakra interfaces (16 video channels), and 1 aviation socket M8
Bus
Support GMSL1 / GMSL2
Deserializer
MAX96712
Serializer
Support MAX96717 / MAX96717F / MAX9295A /
MAX96715 ect
Serializer rate
3G / 6G
GMSL input
Up to 112 video channel inputs can be supported simultaneously, and up to 56 channel 8M camera inputs can be supported simultaneously
Video format
YUV422、RAW12
Synchronous
Supports gPTP timing timestamp with an accuracy of less than 1ms
CAN / CANFD
Supports up tu 21x CAN/CANFD
Operating system
Supports Windows / Linux systems
SDK
Provide SDK for secondary development
Upgradation
Upport network port / PCIE firmware upgrade
External trigger
Support external camera trigger synchronization
I/0 interface
TTL trigger, GPS
Architecture
Support V4L2 software architecture
FAKRA
4 in 1 Amphenal Z code mini-Fakra
Operation temperature
-25℃ ~ 60℃
Storage temperature
-40℃ ~ 85℃
Working humidity
10%～90%
Storage humidity
0～90%
Size
Standard 4U chassis, supports desktop or rack assembly
Host system
The Linux kernel version has tested： UBuntu16-linux4.15.0-142、UBuntu18-linux5.4.0-144、UBuntu20-linux5.15.0-67
Functions
Support to connect the peripherals with AXI interfaces, and support to disconnect the peripherals with MSI;
Support standard IIC and UART equipment;
Support USERPTR and MMAP under the memory mode;
Support the camera configuration and query through IIC bus;
Common operations
VIDIOC_DQBUF, VIDIOC_QBUF
VIDIOC_STREAMOFF, VIDIOC_STREAMON
VIDIOC_REQBUFS, VIDIOC_QUERYBUF
VIDIOC_QUERYCAP, VIDIOC_QUERYCTRL
VIDIOC_G_PARM，VIDIOC_S_PARM
VIDIOC_G_FMT, VIDIOC_S_FMT
VIDIOC_G_CTRL，VIDIOC_S_CTRL
Aging testing of sensors, radars, cameras, ECU and other equipment for autonomous driving, assisted driving, intelligent cockpit and other solutions in the autonomous driving industry
